Model 2F__EFA Roller Conveyor Product Information
Our 2F__EFA model roller conveyors are a very economical and versatile form of conveyance and have many applications. Roller Conveyors are the most common form of conveyor in the world. Our 2F__EFA model roller for a conveyor system may be used to move boxes, cartons and totes.
2F__EFA Roller Conveyor Construction:

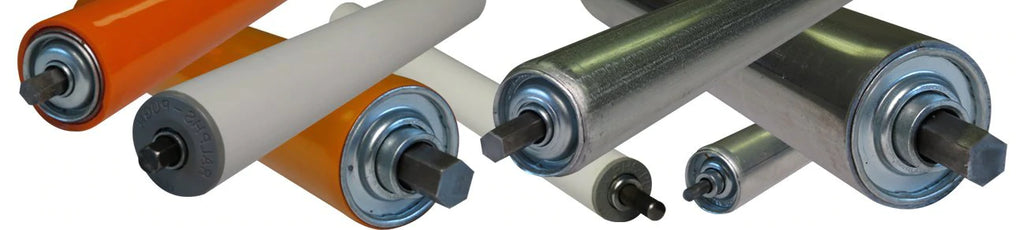

Roller: Model EFA
Tube: 1-3/8" O.D. x 18 ga. aluminum
Roller Bearing: Commercial Light Oil
Axle: 5/16" hex plain steel
Axle retention: Spring
Frame: 2F: 2-1/2" x 1" x 12 ga. aluminum channel
Coupling: Butt plate
Roller Capacity (lbs): 94
Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
2F__EFA Roller Conveyor Configuration:
Roller Centers (in): 1.5, 3, 4.5, 6
Between Frame (in): 7 to 22

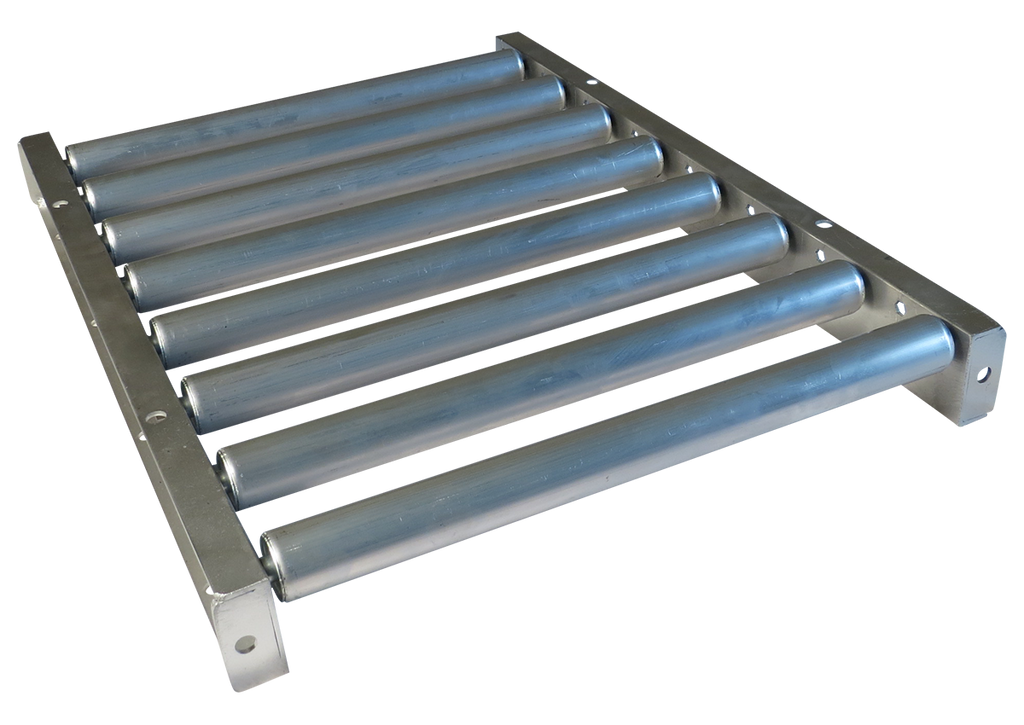

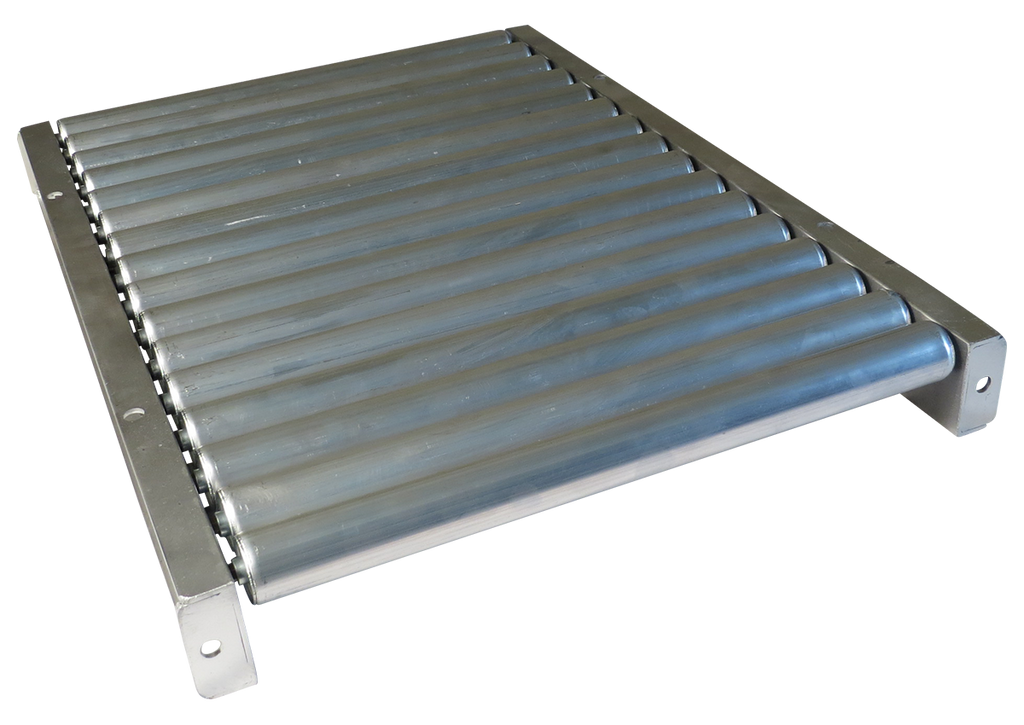

Straights (ft): 5, 10

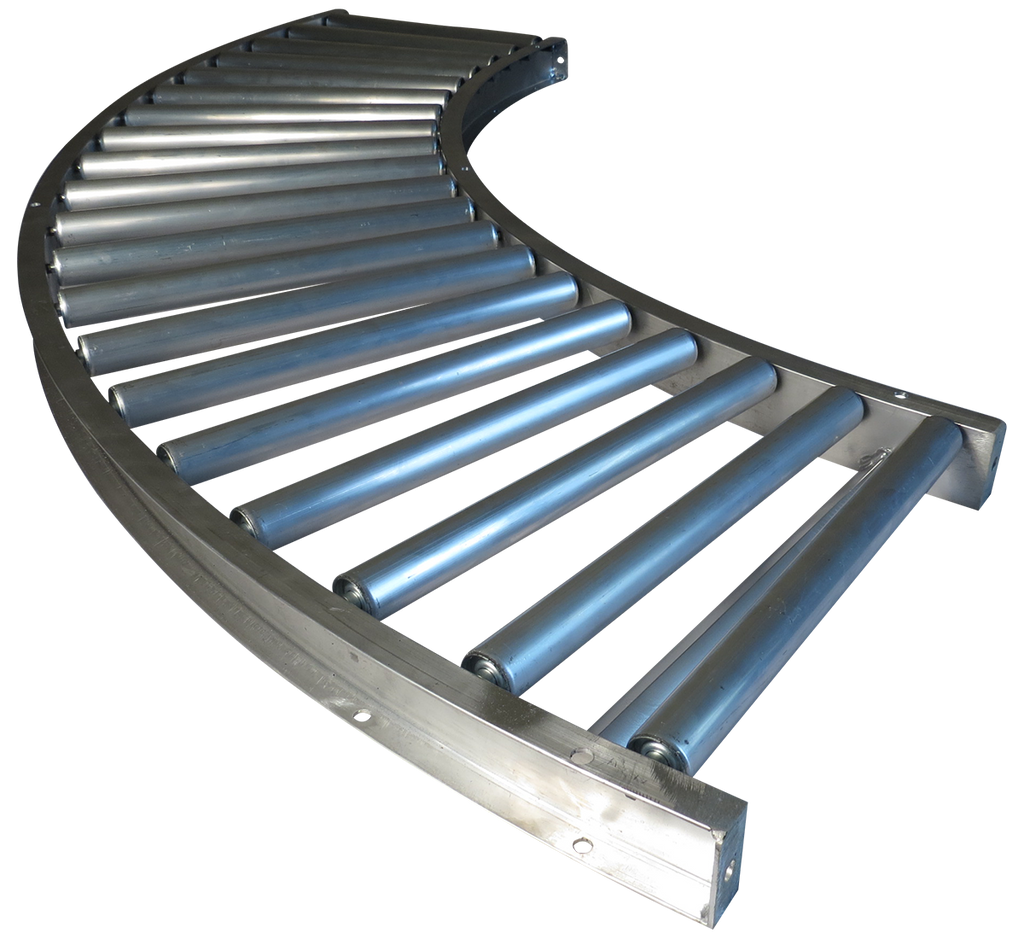

Curves (deg): 45, 90
Sleeve: none
