2F10EFA15B17BP
i LEAD TIME: 12 working days
$753.70
Product Model Information

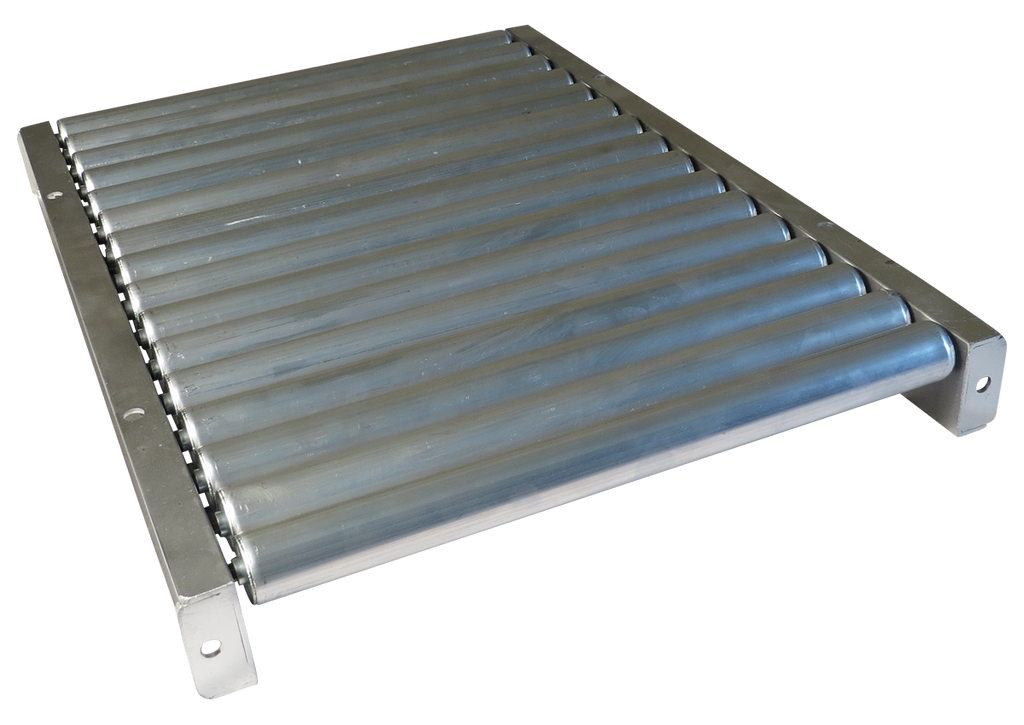

The Model 2F_ _EFA roller conveyor is constructed of 2-1/2" Alum side channels, 1-3/8"x18ga Alum tubing, 5/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
2F10EFA15B17BP Construction
- Type: Straight
- Length (ft): 10
- Between Frame (in): 17
- Roller Centers (in): 1.5
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 94
- Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
- Weight (lbs): 96.9
2F_ _EFA Configurations
- Roller Centers (in): 1.5, 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
