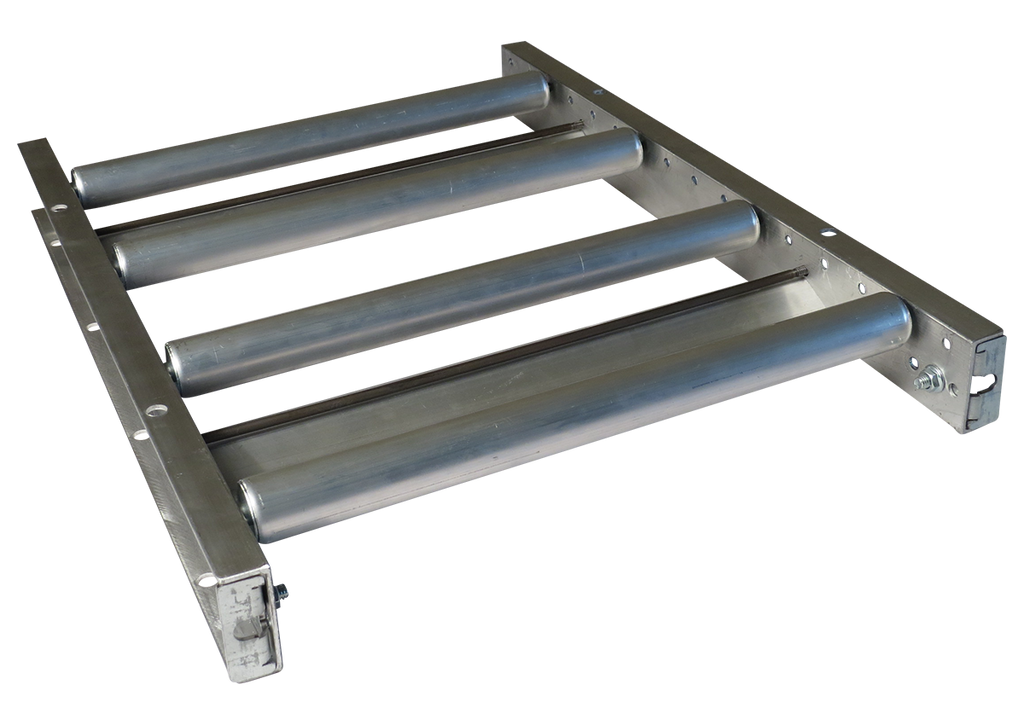

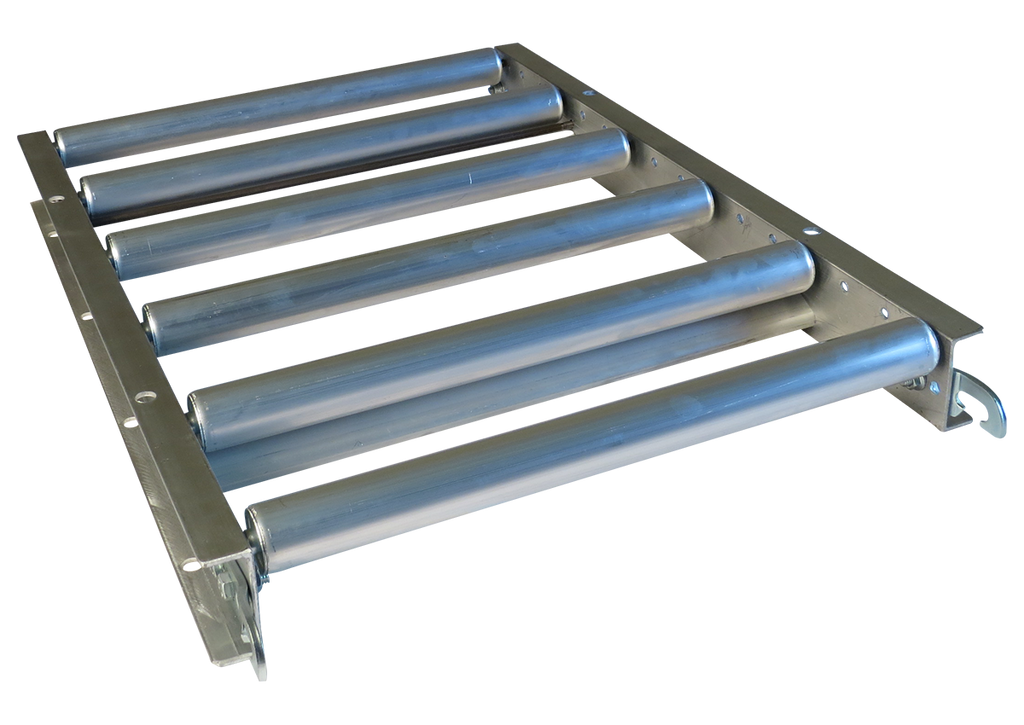

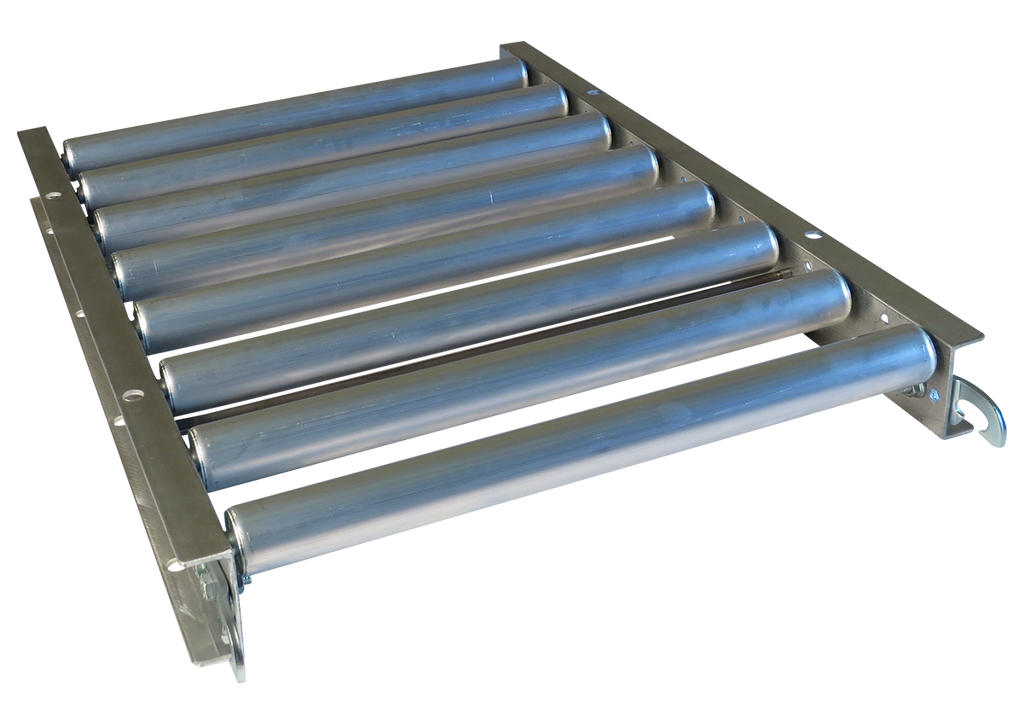

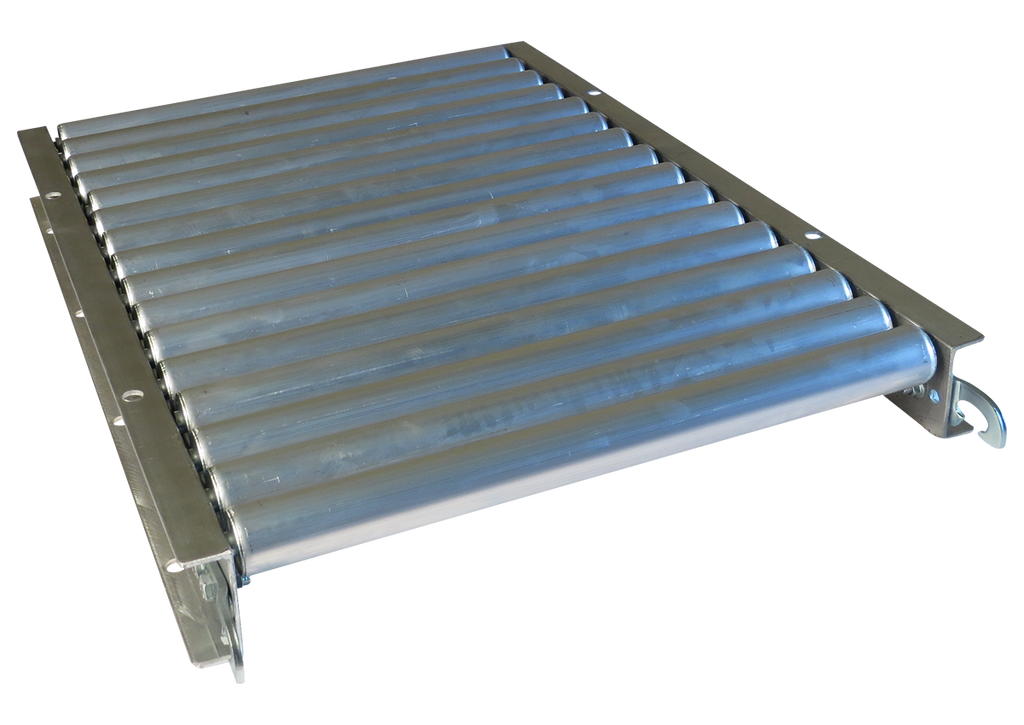

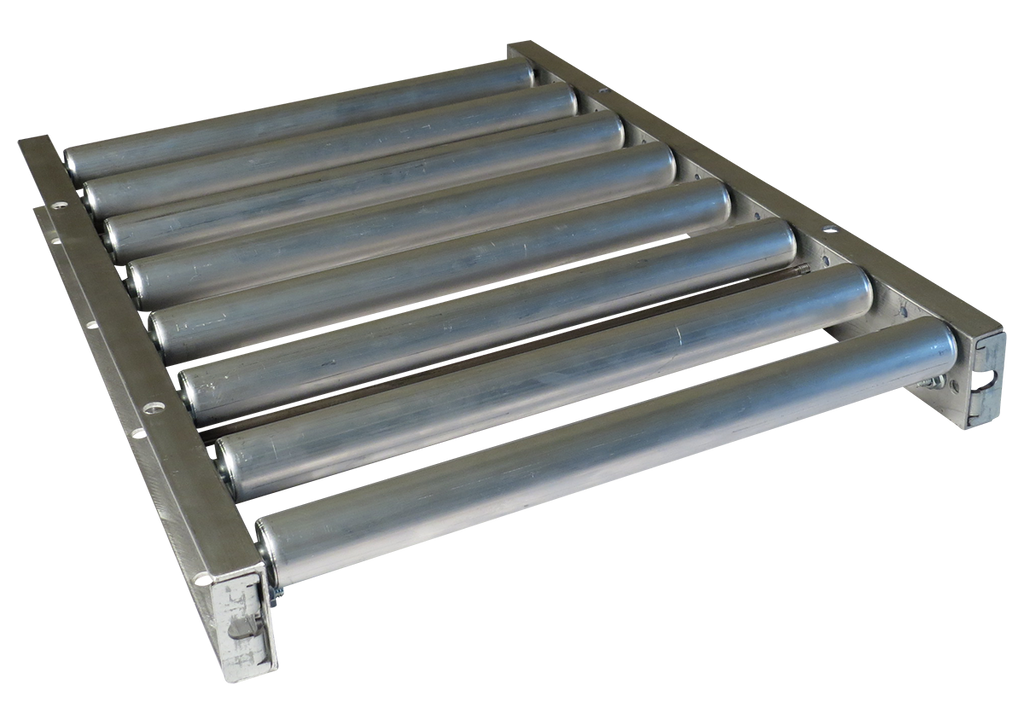

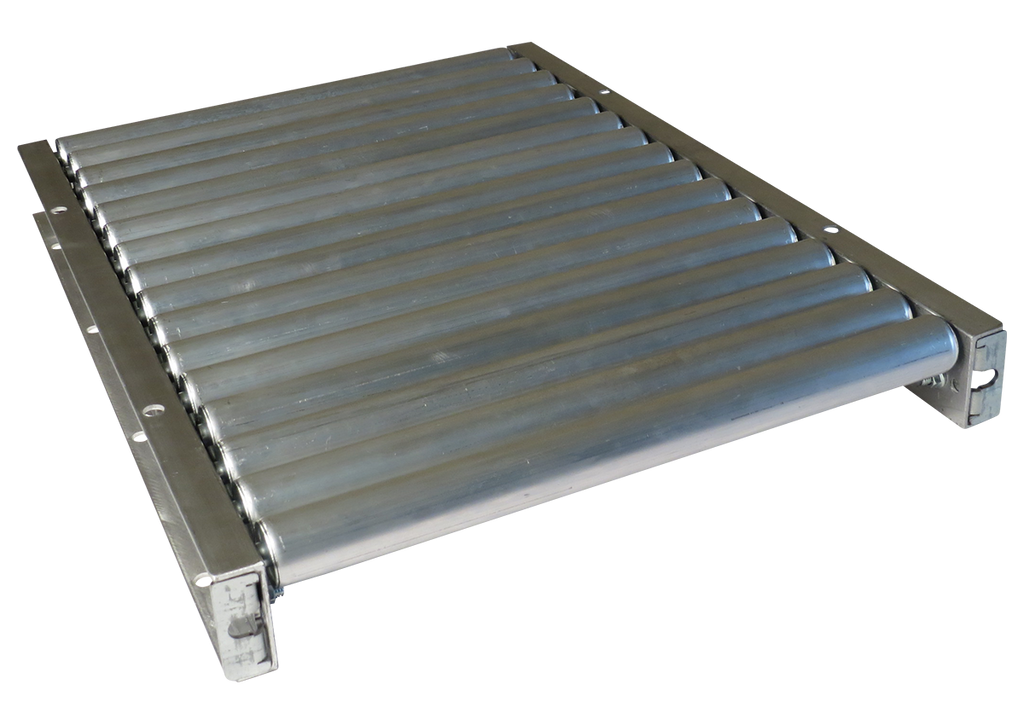

Model 12F_ _EA Roller Conveyor Product Information
The Model 12F_ _EA roller conveyors move on their rollers using the force of gravity to move the load. EA gravity rollers are compact but can conveyor loads of medium weight, making them one of if not the most popular handling systems around. Our roller conveyors at Ashland are one of the simplest and most affordable types of material handling systems. Our 12F__EA model of roller conveyors are ideal for product with firm and flat bottoms or for use on pallet handling lines.
12F__EA Roller Conveyor Construction:
Roller Model: EA
Tube: 1-3/8" O.D. x 18 ga. aluminum
Axle: 1/4" Round Plain Steel
Roller Bearing: Commercial Light Oil
Axle retention: Spring
Frame: 12F: 2-1/2" x 1" x 12 ga. aluminum channel
Coupling: Hook & stud or butt plate
Roller Capacity (lbs): 40 to 94 (dependent upon BF)
Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
12F__EA Roller Conveyor Configuration:
Roller Centers (in): 1.5, 3, 4.5, 6
Between Frame (in): 7 to 22
Straights (ft): 5, 10

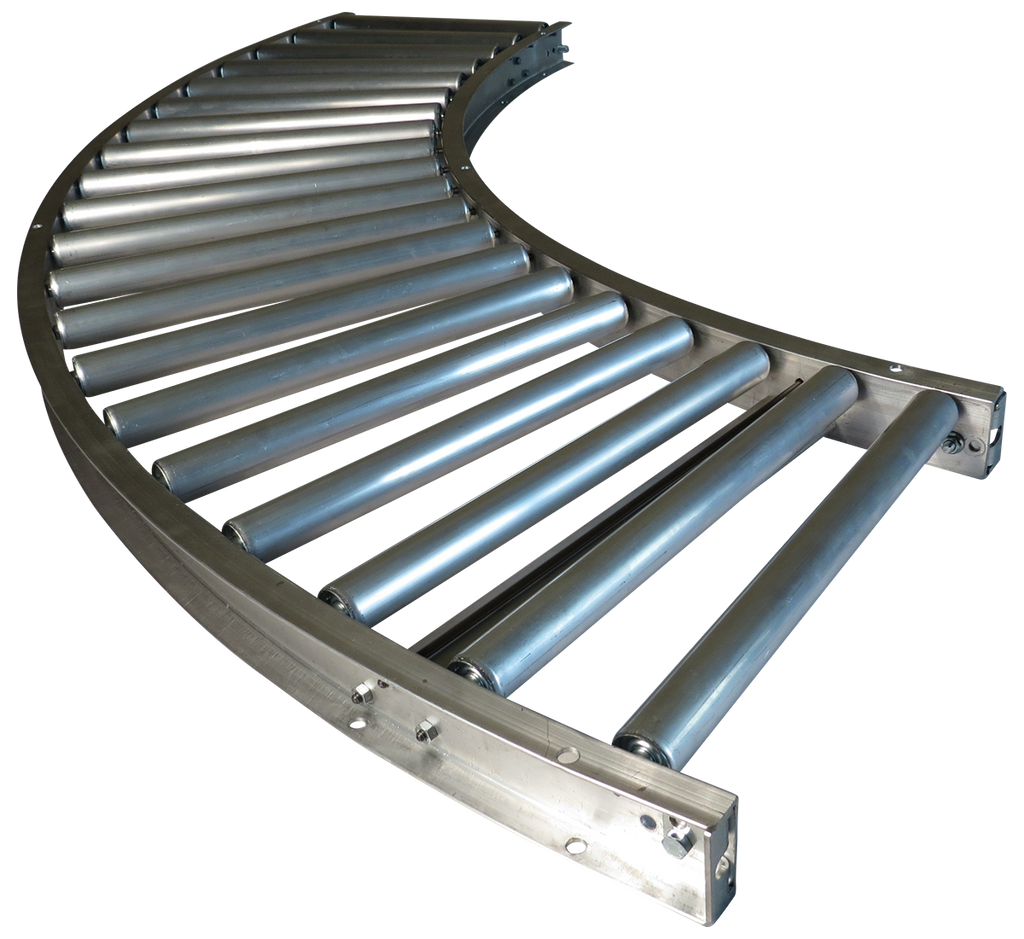

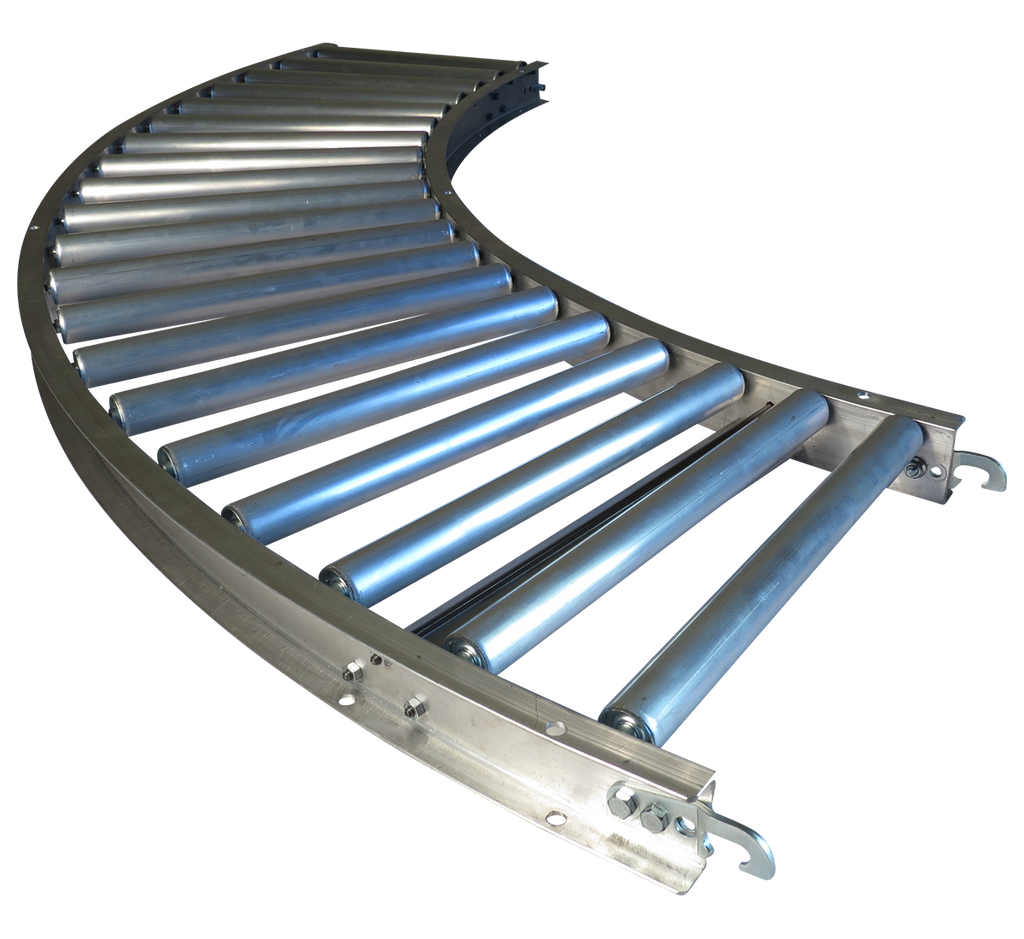

Curves (deg): 45, 90
Sleeve: none online
