TAP16X25X14GAGB27
i LEAD TIME: 5 working days
$121.75
Product Model Information

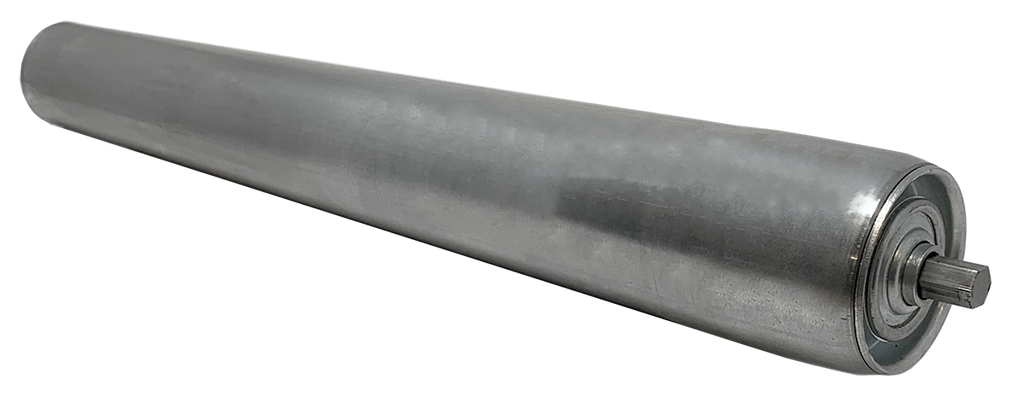

The Model TAP16X25X14GAG roller is a tapered, spring retained conveyor roller constructed of a 2.5" diameter 14 gauge galvanized steel tube with a 7/16" hex plain steel shaft.
TAP16X25X14GAGB27 Construction
- Between Frame (in): 27"
- Roller Tube: 2.5"x14ga Galv Stl
- Small Dia: 1.68"
- Large Dia: 2.50"
- Rate of Taper: .042" per inch
- Grooves: none
- Shaft: 7/16" Hex Plain Stl
- Bearing: Commercial Light oil
- Roller Retention: Spring (large end)
- Capacity (lbs): 250
- Weight (lbs): 4
TAP16X25X14GAG Configurations
- Commercial Light Oil Bearings
- Precision Abec Bearings
- Grooves
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
