SBI35012BRT44.25RC3/4A3ID60
Product Model Information

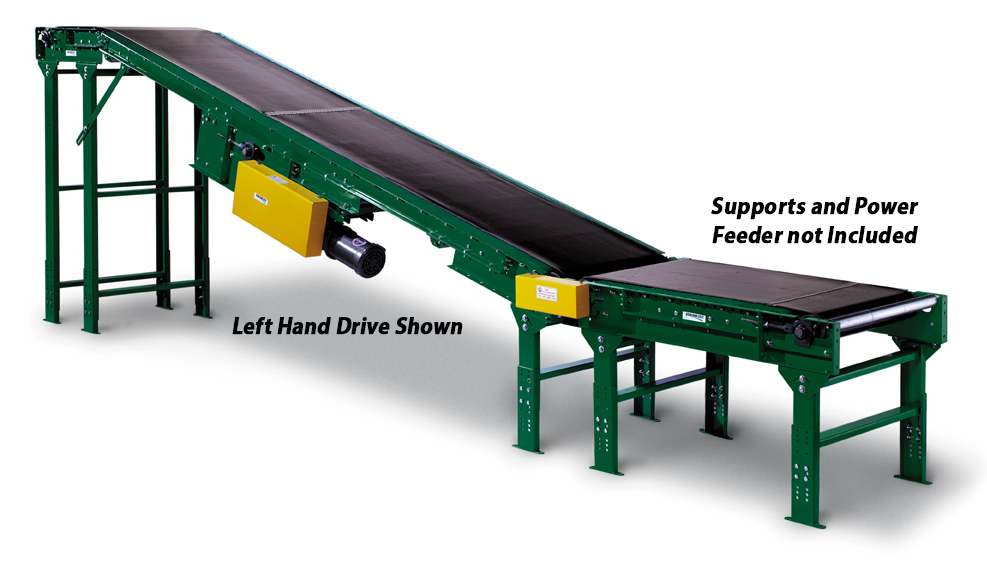

The Model SBI350 incline power belt conveyor is constructed of a 12 ga steel bed mounted within 3-1/2" 11 ga channels, 4" end pulleys, an 8" drive pulley 1.9"diameter return rollers, and a noseover adjustable up to 30 degrees. All incline power conveyors utilize a black Buna Nitrile Rough Top belt and feature a right hand center drive allowing for reversing.
Refer to the Power Belt Conveyor Selection Guide for help.
SBI35012BRT44.25RC3/4A3ID60 Construction
- Type: Slider Bed Channel Frame
- Drive: Center Drive Right Hand
- Overall Length (ft): 44'-3"
- Bed Length (ft): 40
- Belt Width (in): 12
- Motor: 3/4 HP 240/460 VAC 3ɸ
- Speed (FPM): 60
- Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 5
- Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 5
- Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 4
- Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 4
- Weight (lbs): 970
SBI350 Configurations
- Bed Length (ft): 10, 15, 20, 25, 30, 35, 40, 45, 50
- Belt Width (in): 12, 18, 24, 30, 36
- Motor: 3/4 HP-240/480 VAC-3ɸ-ID, 1 HP-240/480 VAC-3ɸ-ID, 3/4 HP-120/240 VAC-1ɸ-PE, 1 HP-120/240 VAC-1ɸ-PE
- Speed (ft/min): 40, 60, 90
