RB1906BRT52RE1A1PE90
i LEAD TIME: 20 working days
$7,019.60
Product Model Information

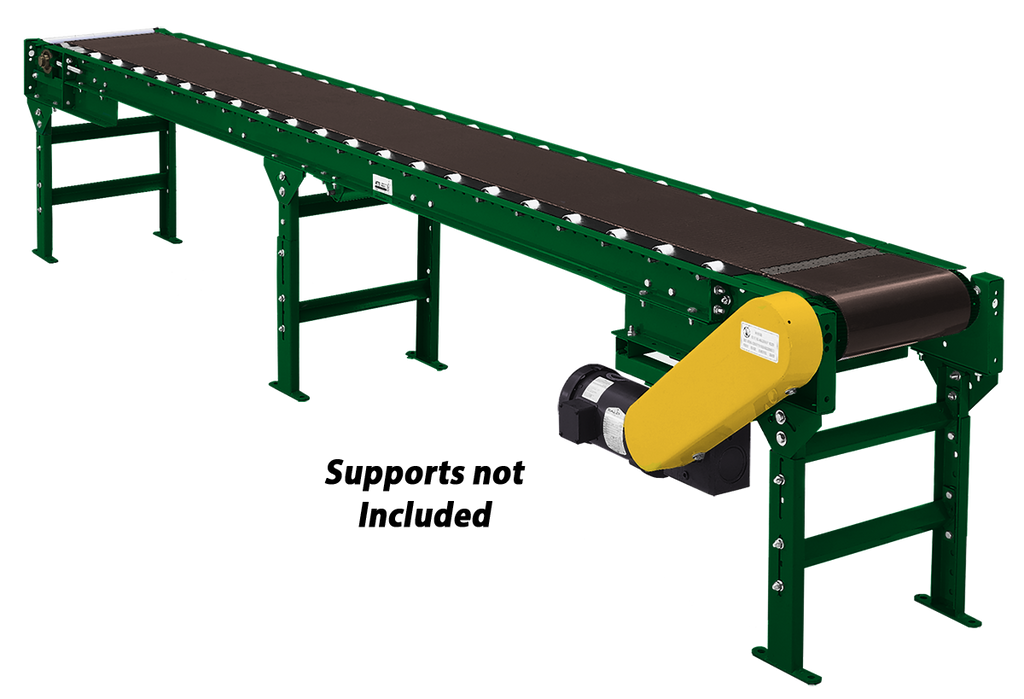

The Model RB190 power belt conveyor is constructed of 1.9x16 ga galvanized steel rollers on 6" centers mounted within 3-1/2" 11 ga channels, 4" end pulleys, and 1.9"diameter return rollers.
Refer to the Power Belt Conveyor Selection Guide for help.
RB1906BRT52RE1A1PE90 Construction
- Type: Roller Bed Channel Frame
- Overall Length (ft): 52
- Drive: End Drive Right Hand
- Belt: Rough Top Black SBR
- Belt Width (in): 6
- Motor: 1 HP 120/240 VAC 1ɸ
- Speed (FPM): 90
- Roller Centers (in): 6
- Load Capacity 10' Support Centers at no Incline(lbs/ft): 73
- Load Capacity 5' Support Centers at no Incline(lbs/ft): 73
- Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 11
- Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 11
- Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 7
- Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 7
- Weight (lbs): 770
RB190 Configurations
- Overall Length (ft): 7, 12, 17, 22, 32, 42, 52
- Drive: End Drive Right Hand, Center Drive Right Hand
- Belt Width: 6, 12, 18, 24, 30, 36
- Belt: General Purpose Smooth Black PVC, Rough Top Black SBR, FDA/USDA Food Grade White Buna-N
- Motor: , , , , ,
- Speed (ft/min): 30, 40, 60, 90
