HMT22B08
Product Model Information

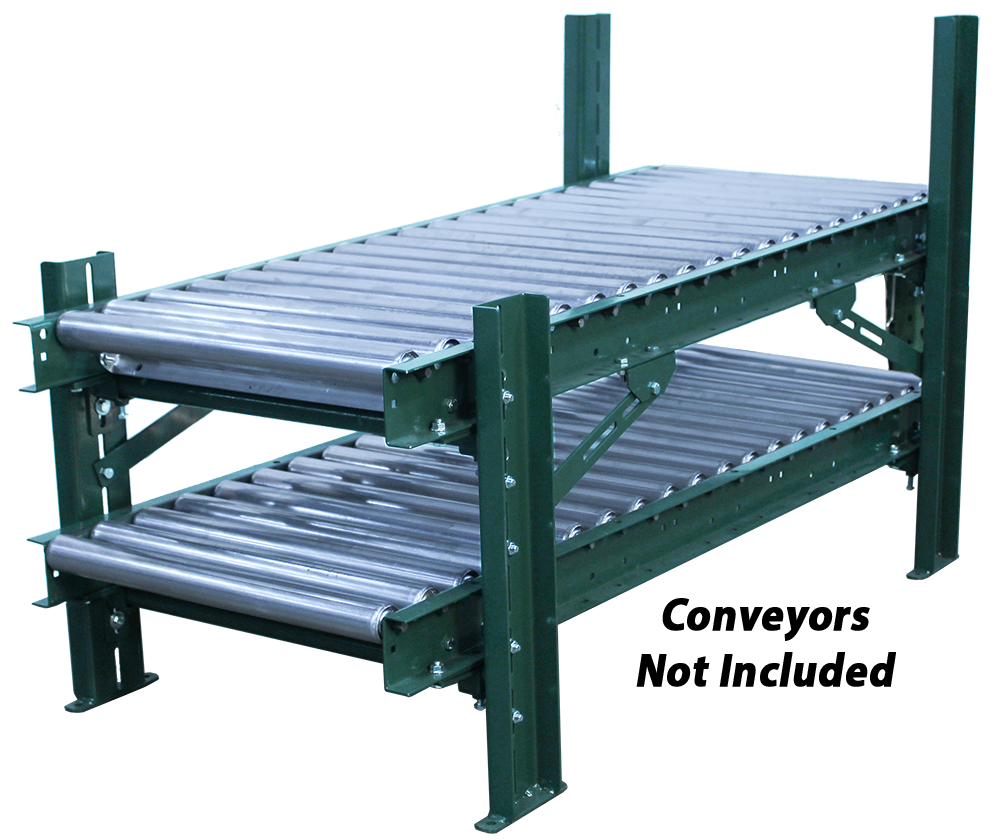

The HMT model support is a multitier support allowing multi-level conveyor installation. The support has a total capacity of 2,500 pounds and each tier 1,250 pounds. Designed for use with 2-1/2" and 3-1/2" channel frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. The upright leg is constructed of 7 ga steel. Each support comes complete with (2) upright legs, (2) tiers and (1) pair of kneebraces. Additional tiers available separately. The required BF is the same as the conveyor BF to be mounted..
Refer to the Support Selection Guide for help.
HMT22B08 Construction
- Between Frame (in): 8
- Height Range (in): 3-3/4 to 22
- Incl Tiers: 2
- Stand Capacity (lbs): 2,500
- Tier Capacity (lbs): 1,250
- Weight (lbs): 33
HMT Configurations
- Between Frame(in): 7 to 51
- Height Range (in): 3-3/4 to 106
