BTINS6X10BFX12GAG
Product Model Information

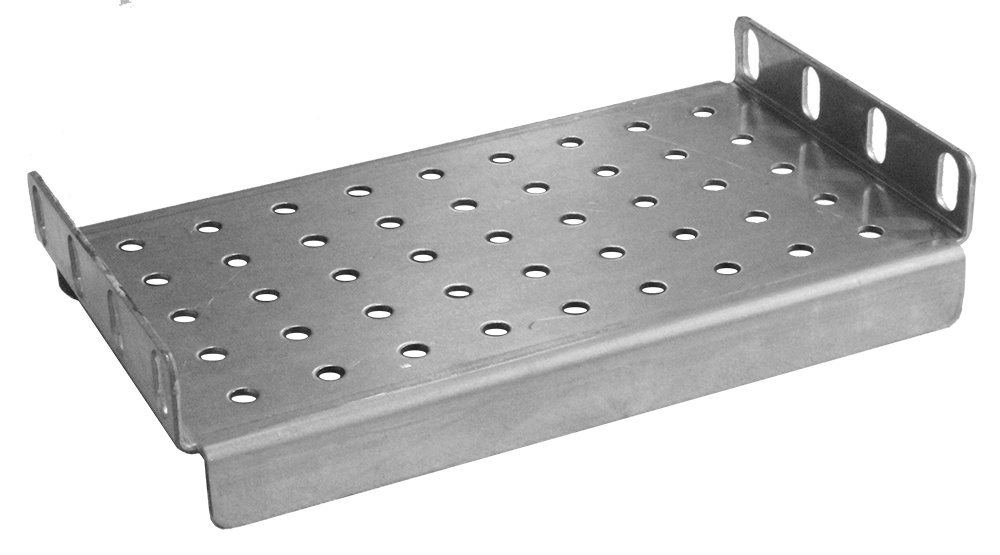

Ball Transfer Insert Plates are designed in the same BF frames, whether 2-1/2" or 3-1/2" channel frames. The 6" wide 12 ga. galvanized plates will bolt into the frame using the axle holes. Axle holes smaller than 7/16" hex will need to be drilled for 3/8" mounting bolts. Ball transfers can be added in any pattern, holes are punched on 1" centers. Capacity rating is evenly distributed.
Refer to the Ball Transfer Insert Assembly Selection Guide for help.
BTINS6X10BFX12GAG Construction
- Conveyor BF (in): 10
- Capacity (lbs): 400
- Weight (lbs): 2.4
BTIPLT Configurations
- Conveyor BF (in): 10, 13, 16, 22, 27, 36
