BRT12XIN
Product Model Information

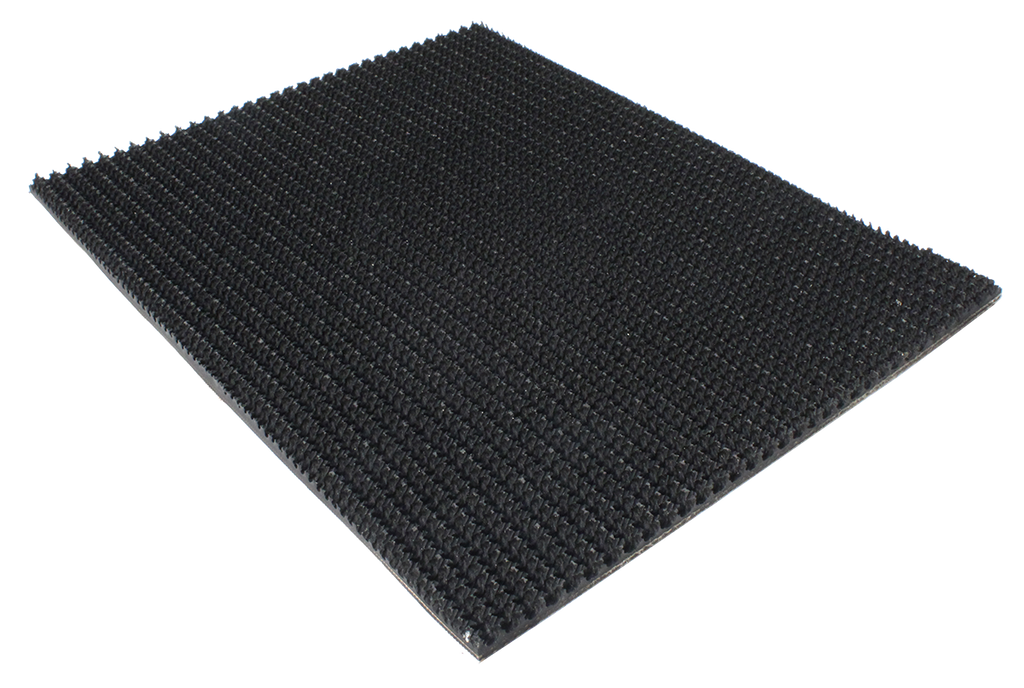

Our Rough Top Belt may be used for general conveying of loose or packaged products for applications such as Incline Conveyor, Metal Stampings, Package Handling, Lumber, and Warehouse/Distribution. Belts can be purchased with or without optional factory installed lacing. If a non-whole foot length is desired enter the next whole foot increment and in the order comments field enter the exact length desired. We recommend CLPR1-6 lacing for this belt.
NOTE: Belting is sold by the INCH.
Refer to the Power Belt Conveyor Selection Guide for help.
BRT Construction
- Color: Black

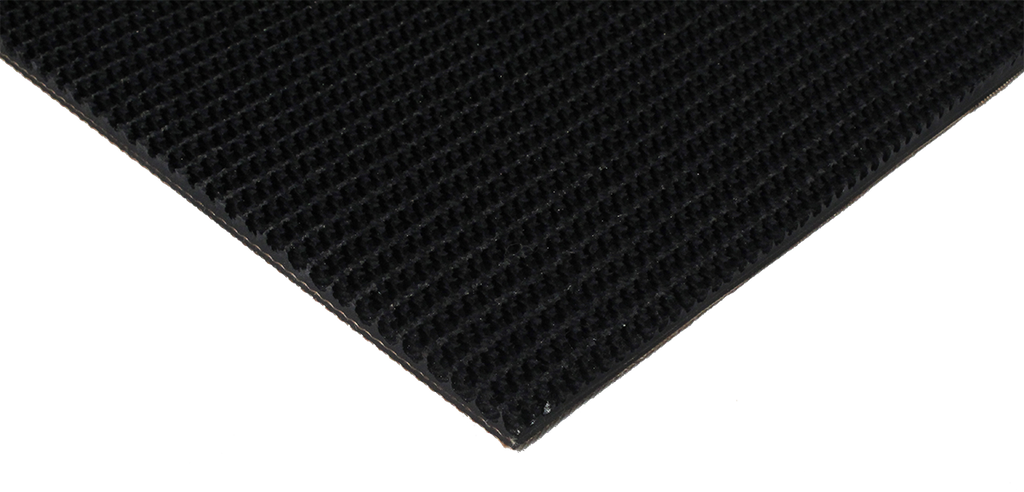

- Surface: .156" Rough Buna-N
- Width (in): 12
- Belt Thickness (in): 0.235
- No of Plies: 2
- Min Pulley Dia (in): 2
- Temperature Range (F): -40 to 250
- Strength (Lbs per In Width): 150
- Coefficeint of Friction (on steel): 0.25
- Weight Per Inch Length(lbs): 0.1
BRT Configurations
- Width (in): 6, 12, 18, 24, 30, 36
