BRG250X11GA11/16HAB
i LEAD TIME: 2 working days
$10.26
Product Model Information

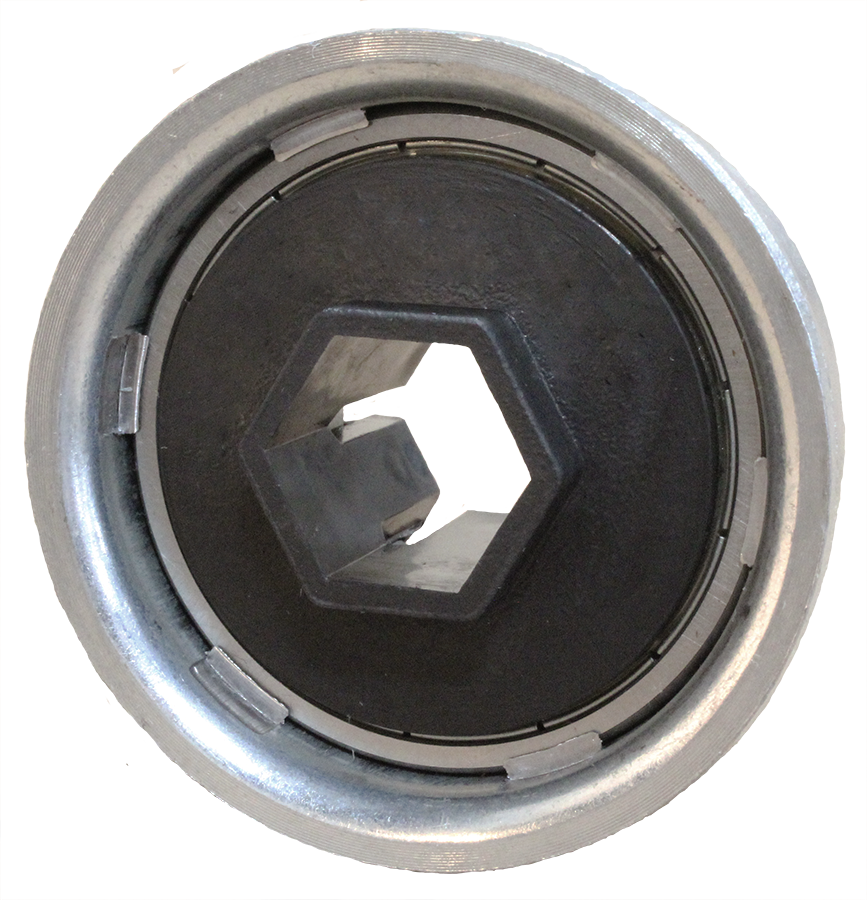

The Model BRG250X11GA11/16HAB roller bearing is a Swage style bearing. This bearing is designed to fit 2.5x11GA tubing and a 11/16 Hex shaft. This bearing will also work with 2.625x7GA tubing. This bearing has a conductive polymer hub.
Refer to the Roller Selection Guide for help.
BRG250X11GA11/16HAB Construction
- Tube Size: 2.5x11GA
- Axle (in): 11/16 Hex
- Capacity (lbs): 3150
- Ball Material: Carbon Stl
- Inner Race Material: Carbon Stl
- Outer Race Material: Carbon Stl
- Hub Material: Conductive Polymer
- Max RPM: 2000
- Temp Range (F): -20-350
- Lube: Light Oil
- Seals: Front
- Fit: Swage
- Weight (lbs): 0.6
Roller Bearing Configurations
- Capacity (lbs): 47 to 3,150
- Axle Size: 1/4 round, 5/16 hex, 7/16 hex, 11/16 hex
- Tube Size: 1-3/8x16GA, 1-3/8x18GA, 1.9x12GA, 1.9x16GA, 1.9x9GA, 2-1/2x14GA, 2-1/2x11GA, 2-5/8X7GA
