BRG190X16GA7/16HLO
i LEAD TIME: 2 working days
$1.32
Product Model Information

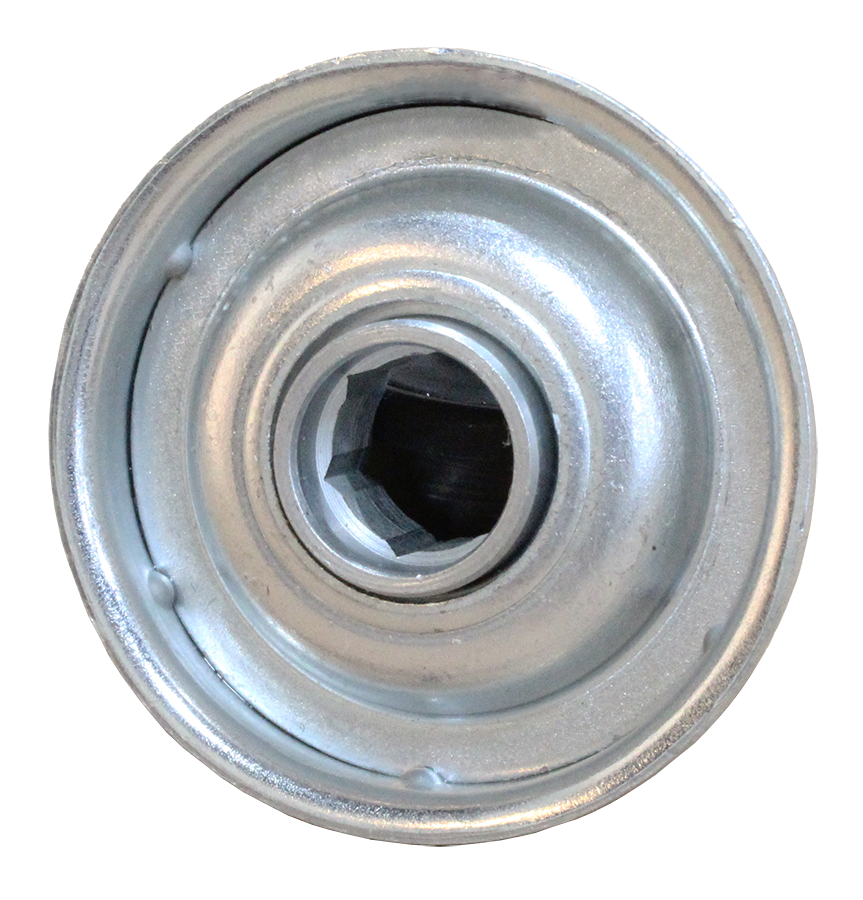

The Model BRG190X16GA7/16HLO roller bearing is a Swage style bearing. This bearing is designed to fit 1.9x16GA tubing and a 7/16 Hex shaft.
Refer to the Roller Selection Guide for help.
BRG190X16GA7/16HLO Construction
- Tube Size: 1.9x16GA
- Axle (in): 7/16 Hex
- Capacity (lbs): 130
- Ball Material: Carbon Stl
- Inner Race Material: Carbon Stl
- Outer Race Material: Carbon Stl
- Hub Material: Steel
- Max RPM: 200
- Temp Range (F): -20-140
- Lube: Light Oil
- Seals: none
- Fit: Swage
- Weight (lbs): 0.2
Roller Bearing Configurations
- Capacity (lbs): 47 to 3,150
- Axle Size: 1/4 round, 5/16 hex, 7/16 hex, 11/16 hex
- Tube Size: 1-3/8x16GA, 1-3/8x18GA, 1.9x12GA, 1.9x16GA, 1.9x9GA, 2-1/2x14GA, 2-1/2x11GA, 2-5/8X7GA
