BRG138X18GA1/4RSPLOTSSS
i LEAD TIME: 2 working days
$32.16
Product Model Information

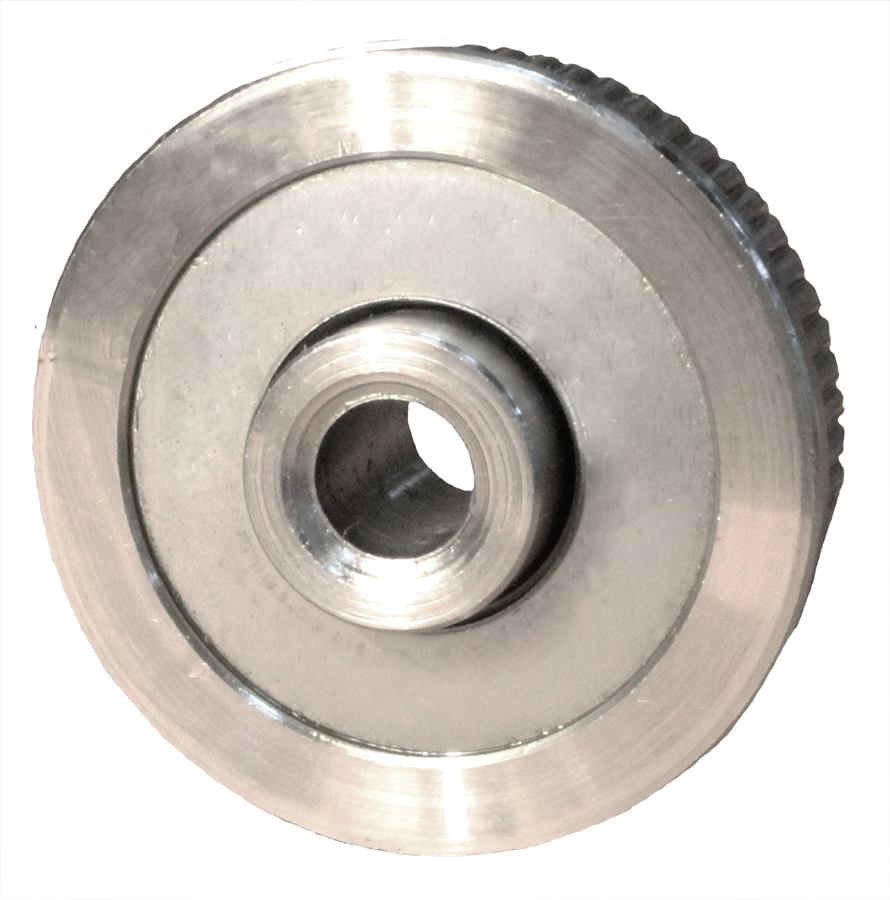

The Model BRG138X18GA1/4RSPLOTSSS roller bearing is a Direct Press style bearing. This bearing is designed to fit 1.375x18GA tubing and a 1/4 Rd shaft.
Refer to the Roller Selection Guide for help.
BRG138X18GA1/4RSPLOTSSS Construction
- Tube Size: 1.375x18GA
- Axle (in): 1/4 Rd
- Capacity (lbs): 276
- Ball Material: 316 St Stl
- Inner Race Material: 316 St Stl
- Outer Race Material: 316 St Stl
- Hub Material: Steel
- Max RPM: 1200
- Temp Range (F): -20-160
- Lube: Light Oil
- Seals: Front & Rear
- Fit: Direct Press
- Weight (lbs): 0.2
Roller Bearing Configurations
- Capacity (lbs): 47 to 3,150
- Axle Size: 1/4 round, 5/16 hex, 7/16 hex, 11/16 hex
- Tube Size: 1-3/8x16GA, 1-3/8x18GA, 1.9x12GA, 1.9x16GA, 1.9x9GA, 2-1/2x14GA, 2-1/2x11GA, 2-5/8X7GA
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
$32.16
