BRG138X16GA7/16HAB
i LEAD TIME: 2 working days
$14.48
Product Model Information

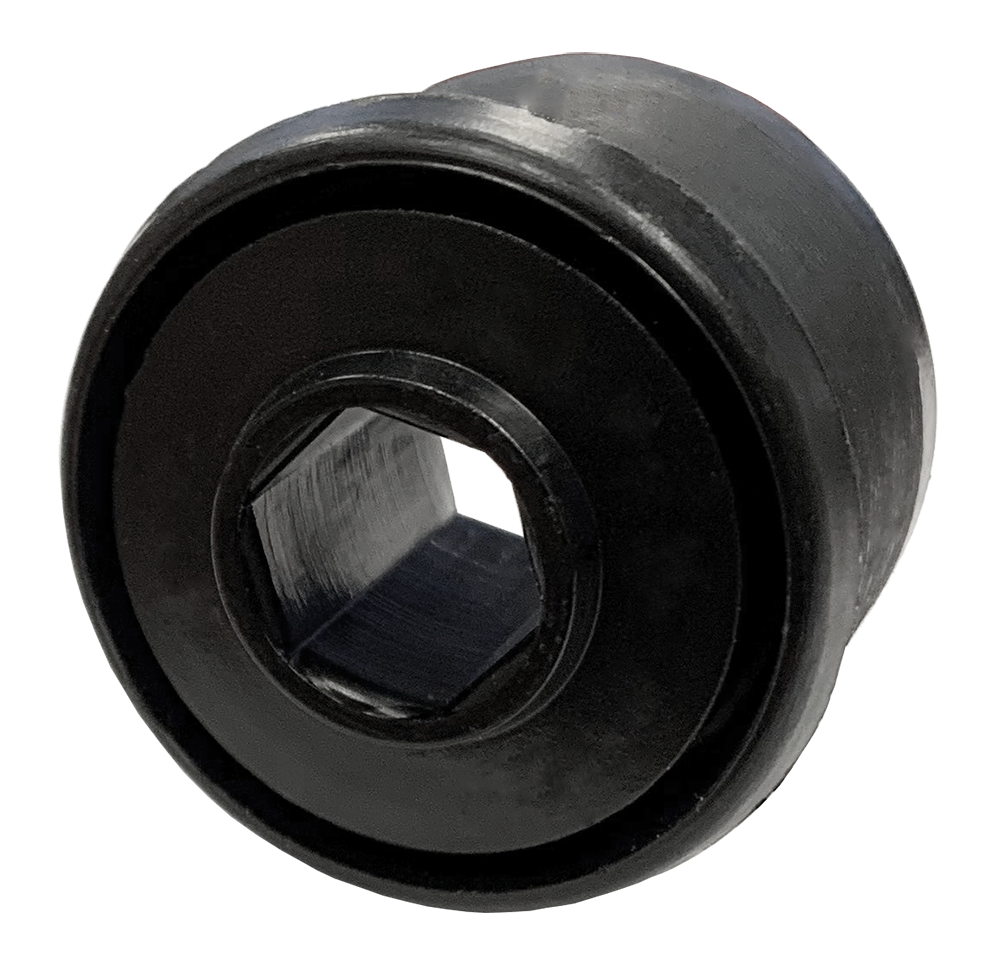

The Model BRG138X16GA7/16HAB roller bearing is a Swage style bearing. This bearing is designed to fit 1.375x16GA tubing and a 7/16 Hex shaft. This bearing has a conductive polymer hub.
Refer to the Roller Selection Guide for help.
BRG138X16GA7/16HAB Construction
- Tube Size: 1.375x16GA
- Axle (in): 7/16 Hex
- Capacity (lbs): 1010
- Ball Material: Carbon Stl
- Inner Race Material: Carbon Stl
- Outer Race Material: Carbon Stl
- Hub Material: Conductive Polymer
- Max RPM: 2000
- Temp Range (F): 0-150
- Lube: Light Oil
- Seals: Front & Rear
- Fit: Swage
- Weight (lbs): 0.1
Roller Bearing Configurations
- Capacity (lbs): 47 to 3,150
- Axle Size: 1/4 round, 5/16 hex, 7/16 hex, 11/16 hex
- Tube Size: 1-3/8x16GA, 1-3/8x18GA, 1.9x12GA, 1.9x16GA, 1.9x9GA, 2-1/2x14GA, 2-1/2x11GA, 2-5/8X7GA
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
$14.48
