BH15M13B42
Product Model Information

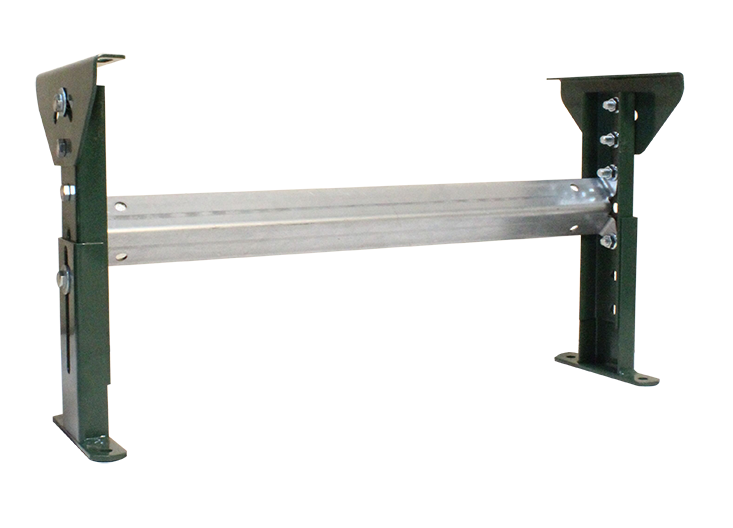

The BH15 model support is a 1,500 pound capacity Hstand which may be used with Ashland Conveyor 2-1/2" and 3-1/2" channel frames, not for use with 4" frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. Upper and lower legs are constructed of 12 ga steel. Single legs are available for applications such as curves. Assembly required..
Refer to the Support Selection Guide for help.
BH15M13B42 Construction
- Between Frame (in): 42
- Height Range (in): 11-1/2 to 15-3/8
- No of Crossbraces: 1
- Capacity (lbs): 1500
- Weight (lbs): 8.3
BH15 Configurations
- Between Frame(in): 7 to 51
- Height Range (in): 11-1/2 to 109
- Swivel Casters: no
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
