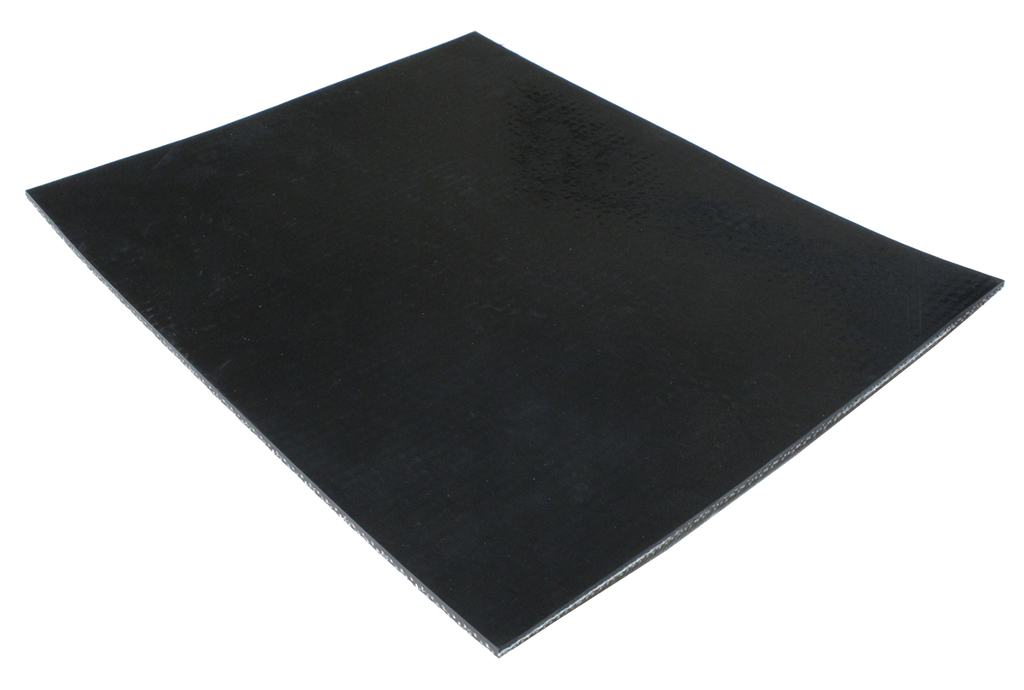

BGP6XIN
Product Model Information

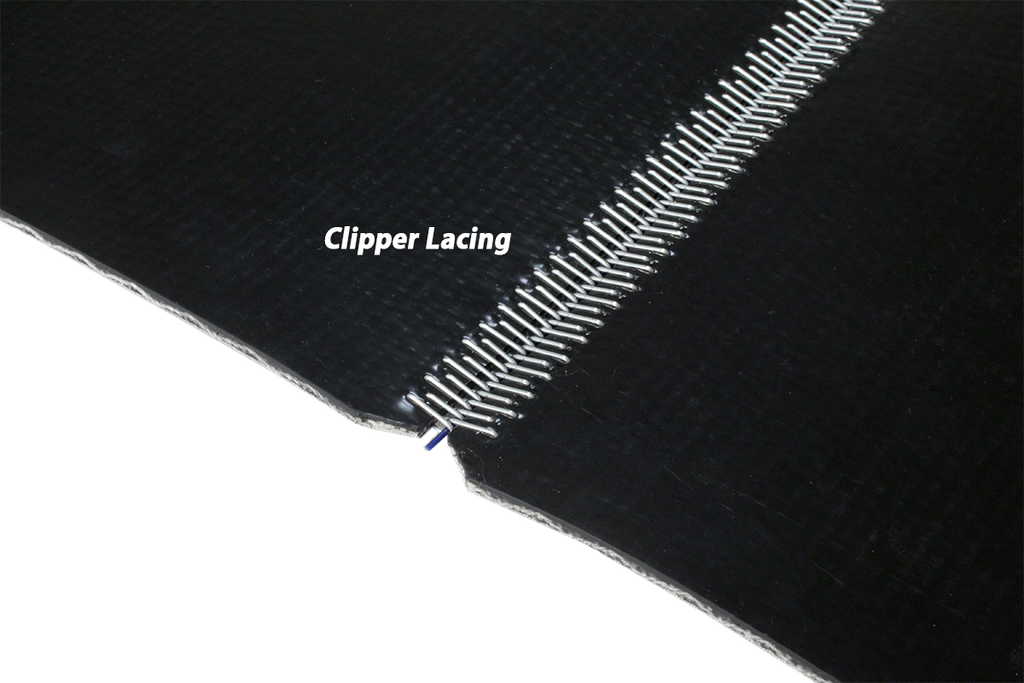

Our General Purpose Belt may be used for general conveying of loose or packaged products for applications such as Metal Stampings, Lumber, Warehouse/Distribution, Live Roller Conveyors, Package Handling, and Case Sealers. Belts can be purchased with or without optional factory installed lacing. If a non-whole foot length is desired enter the next whole foot increment and in the order comments field enter the exact length desired. We recommend CLPR1-6 lacing for this belt.
NOTE: Belting is sold by the INCH.
Refer to the Power Belt Conveyor Selection Guide for help.
BGP Construction
- Color: Black
- Surface: Smooth PVC
- Width (in): 6
- Belt Thickness (in): 0.135
- No of Plies: 1
- Min Pulley Dia (in): 2
- Temperature Range (F): 20 to 180
- Strength (Lbs per In Width): 120
- Coefficeint of Friction (on steel): 0.37
- Weight Per Inch Length(lbs): 0
BGP Configurations
- Width (in): 6, 12, 18, 24, 30, 36
