BGP30XIN
Product Model Information

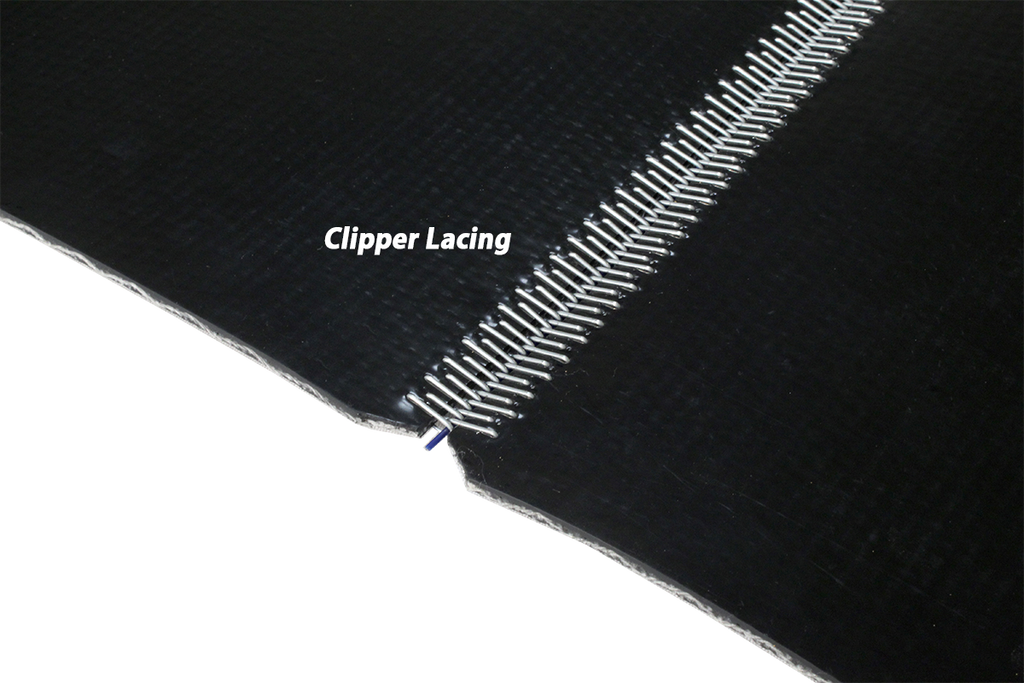

Our General Purpose Belt may be used for general conveying of loose or packaged products for applications such as Metal Stampings, Lumber, Warehouse/Distribution, Live Roller Conveyors, Package Handling, and Case Sealers. Belts can be purchased with or without optional factory installed lacing. If a non-whole foot length is desired enter the next whole foot increment and in the order comments field enter the exact length desired. We recommend CLPR1-6 lacing for this belt.
NOTE: Belting is sold by the INCH.
Refer to the Power Belt Conveyor Selection Guide for help.

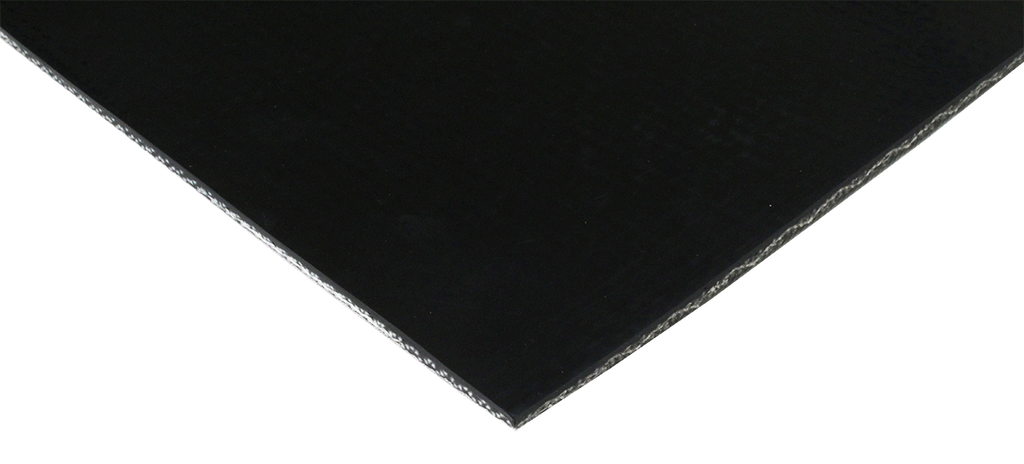

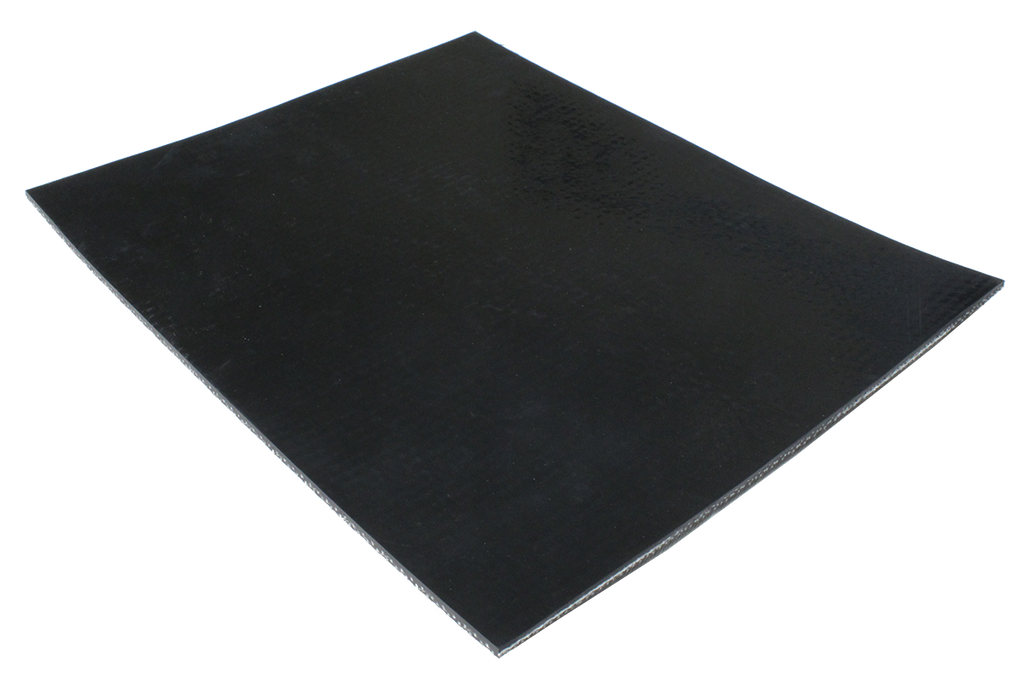

BGP Construction
- Color: Black
- Surface: Smooth PVC
- Width (in): 30
- Belt Thickness (in): 0.135
- No of Plies: 1
- Min Pulley Dia (in): 2
- Temperature Range (F): 20 to 180
- Strength (Lbs per In Width): 120
- Coefficeint of Friction (on steel): 0.37
- Weight Per Inch Length(lbs): 0.2
BGP Configurations
- Width (in): 6, 12, 18, 24, 30, 36
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
