5F10SGPU45B51BP
i LEAD TIME: 7 working days
$4,116.10
Product Model Information

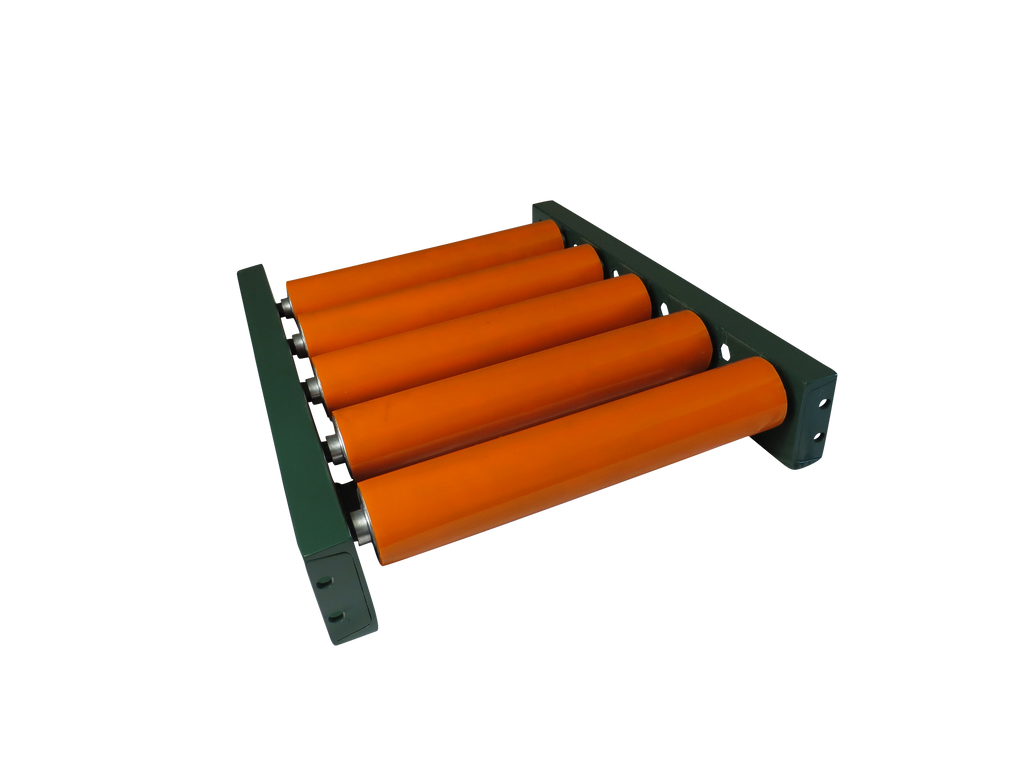

The Model 5F_ _SG roller conveyor is constructed of 4"x5.4# Painted Steel side channels, 2-1/2"x11ga Galv Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
5F10SGPU45B51BP Construction
- Type: Straight
- Length (ft): 10
- Between Frame (in): 51
- Roller Centers (in): 4.5
- Roller Bearing: Commercial Light Oil
- Sleeve: Orange Polyurethane
- Roller Capacity (lbs): 587
- Frame Capacity (lbs/ft): 300 on 10' support centers, 1,550 on 5' centers
- Weight (lbs): 692.1
5F_ _SG Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: 1/8 Orange Polyurethane
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
$4,116.10
