5F05S45B23BP
i LEAD TIME: 7 working days
$683.20
Product Model Information

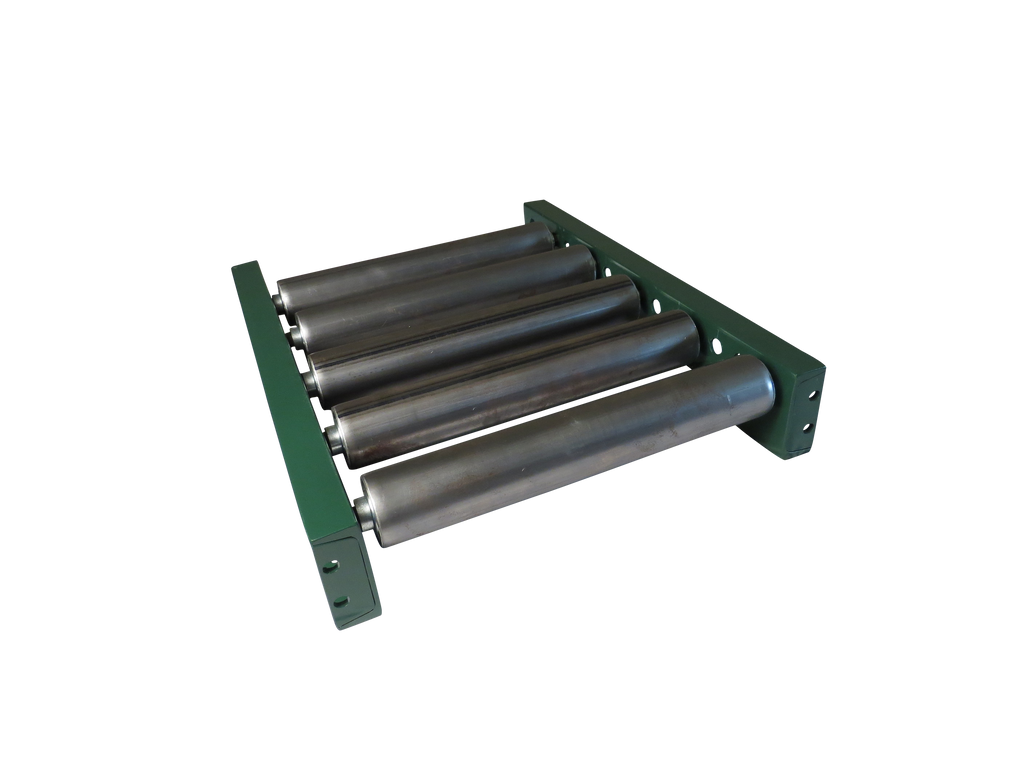

The Model 5F_ _S roller conveyor is constructed of 4"x5.4# Painted Steel side channels, 2-1/2"x11ga Plain Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
5F05S45B23BP Construction
- Type: Straight
- Length (ft): 5
- Between Frame (in): 23
- Roller Centers (in): 4.5
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 850
- Frame Capacity (lbs/ft): 300 on 10' support centers, 1,550 on 5' centers
- Weight (lbs): 157.4
5F_ _S Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
