12X32GX10GNC

i LEAD TIME: 5 working days
$710.00

Product Model Information

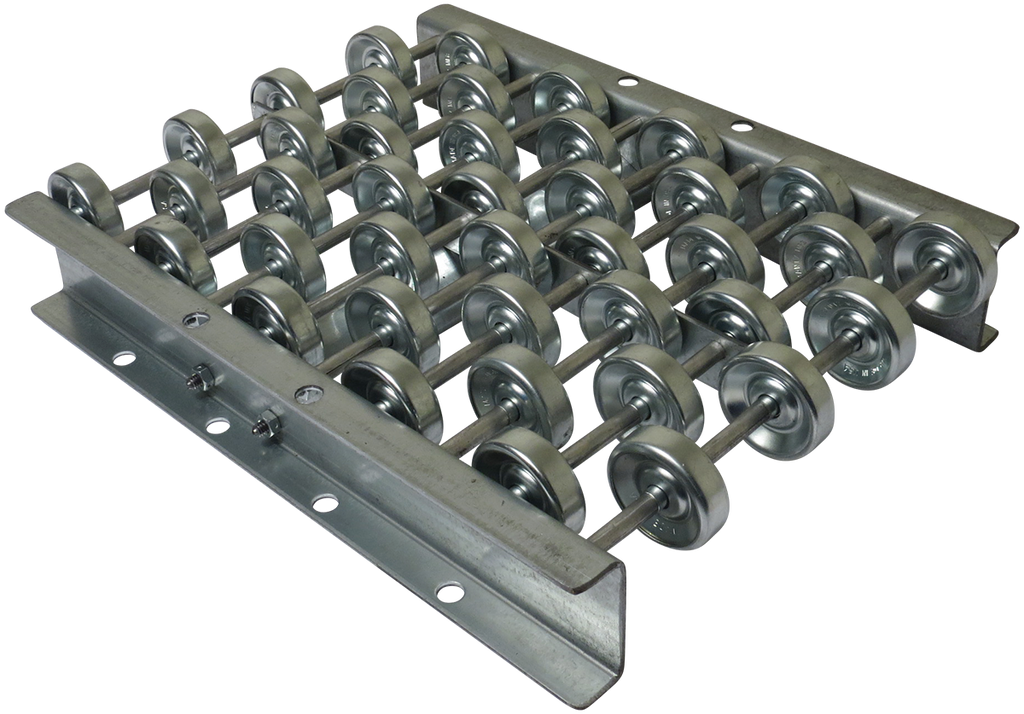

The Model 12X32 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 32 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 12" and a between frame of 10".

Refer to the Skatewheel Conveyor Selection Guide for help.



12X32GX10GNC Construction

  • Type: Straight
  • Frame (in): 2-1/2 Galv Steel
  • Length (ft): 10
  • Overall Width (in): 12
  • Axle Centers (in): 1.5
  • Wheel: Galvanized Steel
  • Wheel Capacity (lbs): 65
  • Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
  • Weight (lbs): 105



12X32 Configurations

  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Spurs: none
  • Wheels: Galv Steel, Aluminum, Black Nylon
