10FR4G6515
i LEAD TIME: 3 working days
$170.50
Product Model Information

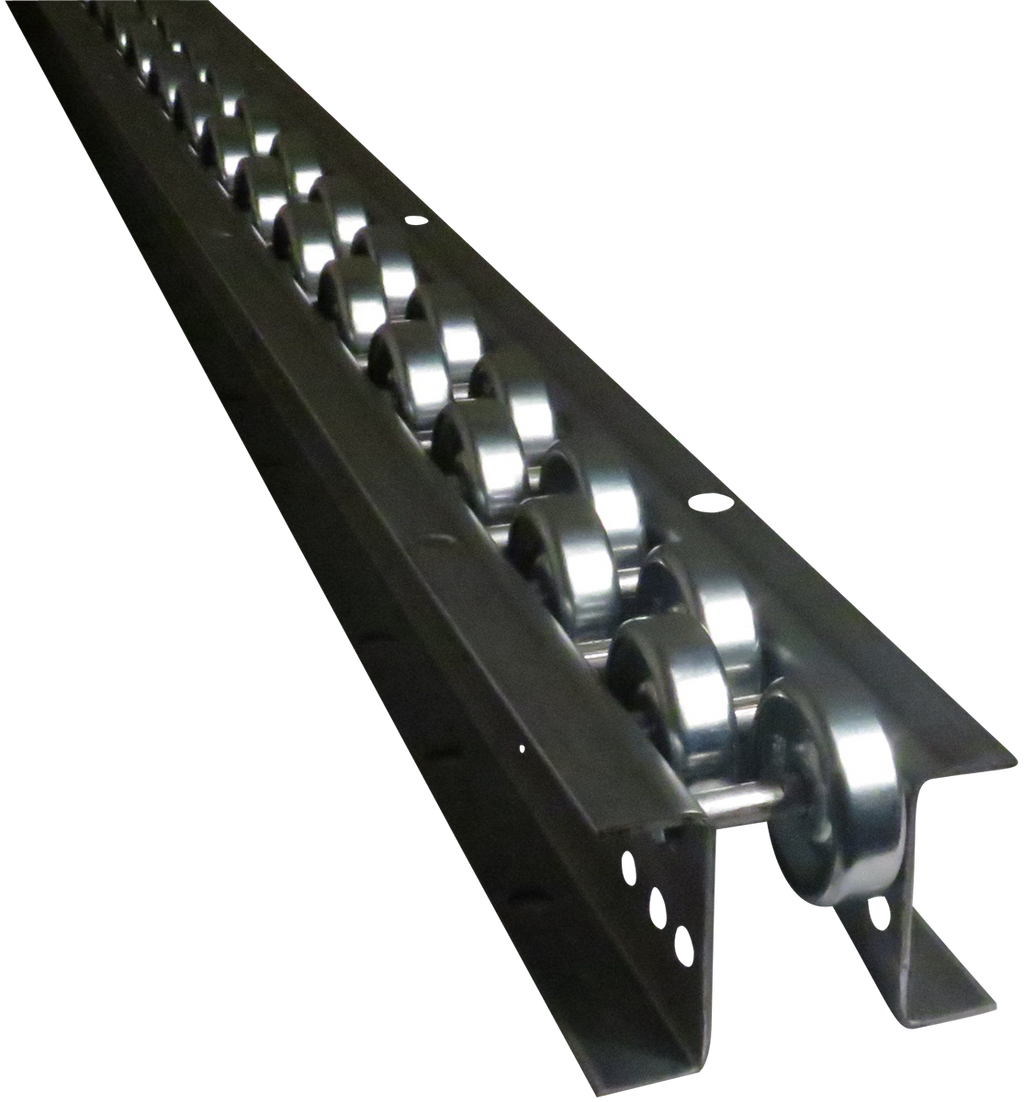

The Model FR4 flow rail is constructed of 2-1/2" galvanized steel channel. The wheels are 1-15/16" diameter and 13/16" wide.
Refer to the Flow Rail Selection Guide for help.
Construction
- Type: Wheel
- Rail: 1"x2-1/2" Galv Stl Chnl
- Length (ft): 10
- Centers (in): 1.5
- Wheels Per Foot: 8
- Rolling Surface: Steel
- Wheel Capacity (lbs): 65
- Flow Rail Capacity (lbs/ft): 36 on 10' support centers, 240 on 5' centers
- Weight (lbs): 46
FR4 Configurations
- Lengths (ft): 5, 10
- Centers (in): 1.5, 3
