10F45CGAB15B25BP
i LEAD TIME: 10 working days
$1,596.20
Product Model Information

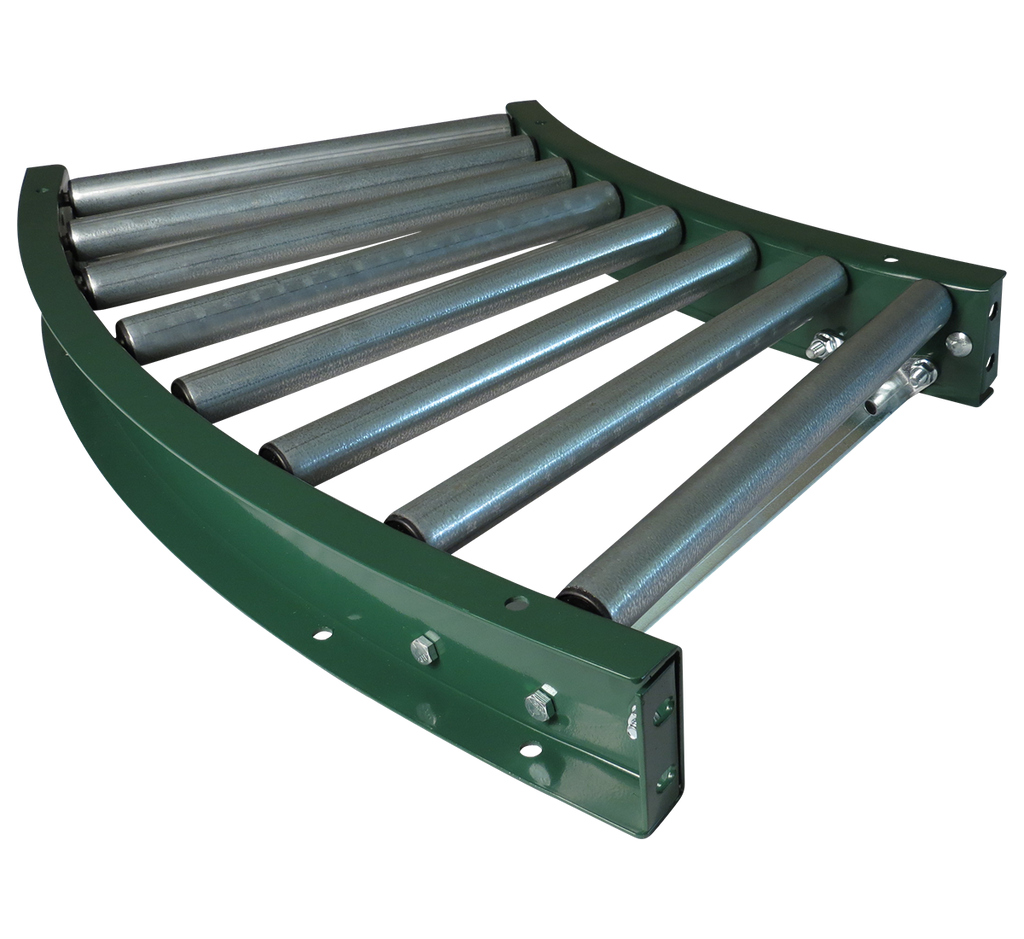

The Model 10F_ _CG roller conveyor is constructed of 3-1/2" Painted Steel side channels, 1-3/8"x16ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
10F45CGAB15B25BP Construction
- Type: Curve
- Angle (deg): 45
- Inner Radius (in): 30
- Between Frame (in): 25
- Roller Centers (in): 1.5
- Roller Bearing: Precision Abec
- Sleeve: none
- Roller Capacity (lbs): 300
- Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
- Weight (lbs): 98.1
10F_ _CG Configurations
- Roller Centers (in): 1.5, 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
