10F10DG06B23BP
i LEAD TIME: 7 working days
$614.70
Product Model Information

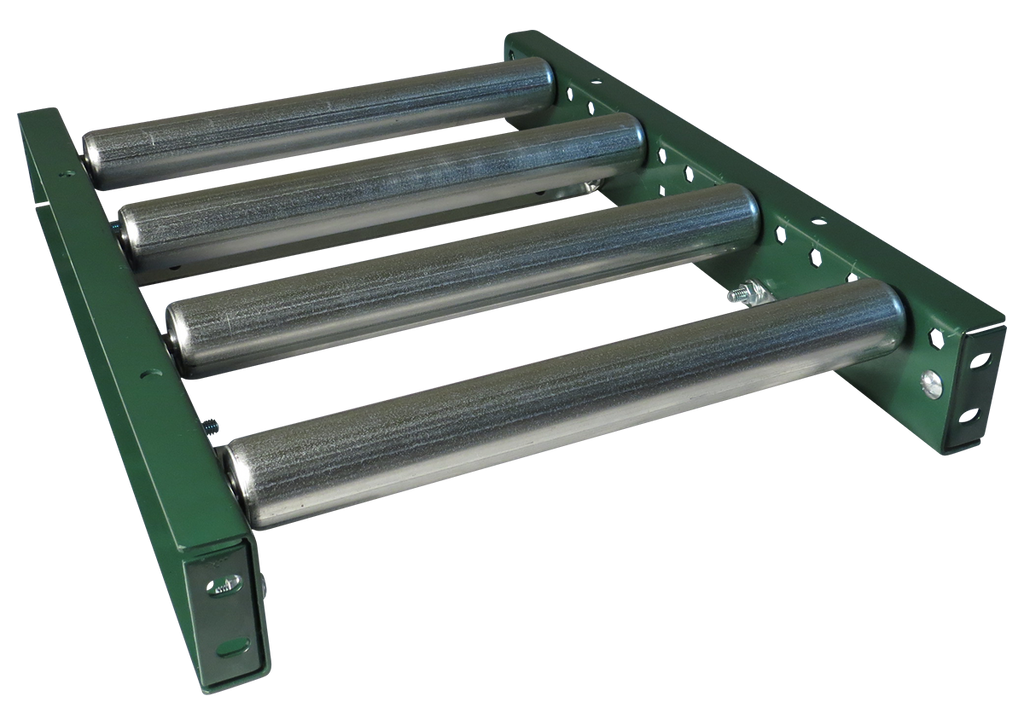

The Model 10F_ _DG roller conveyor is constructed of 3-1/2" Painted Steel side channels, 1.9"x12ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
10F10DG06B23BP Construction
- Type: Straight
- Length (ft): 10
- Between Frame (in): 23
- Roller Centers (in): 6
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 270
- Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
- Weight (lbs): 258.4
10F_ _DG Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
$614.70
