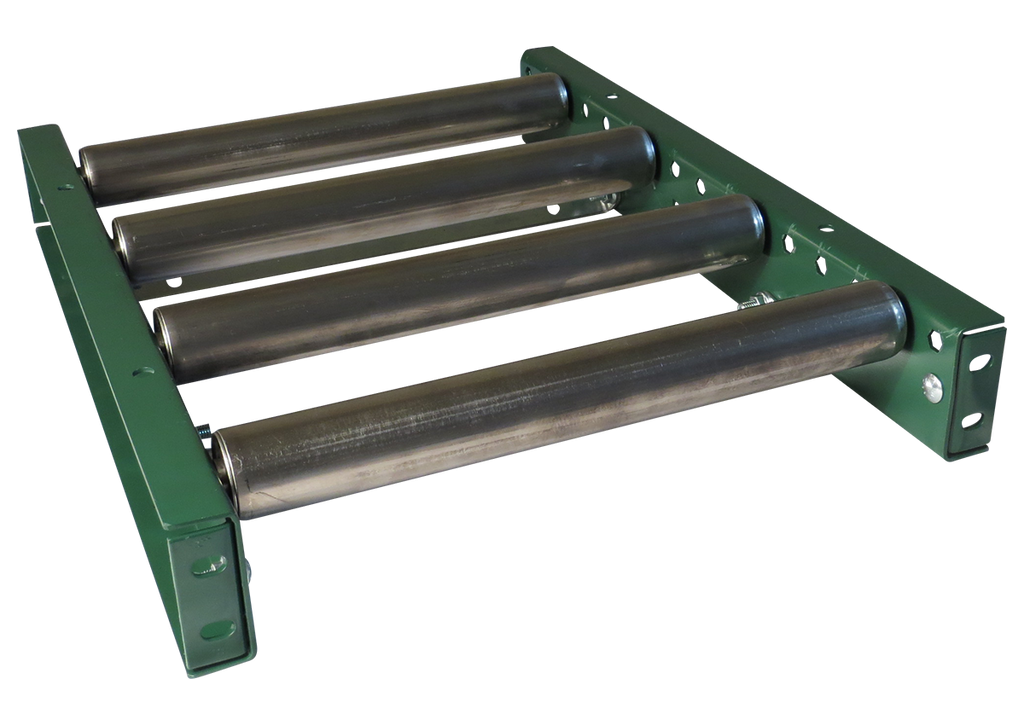

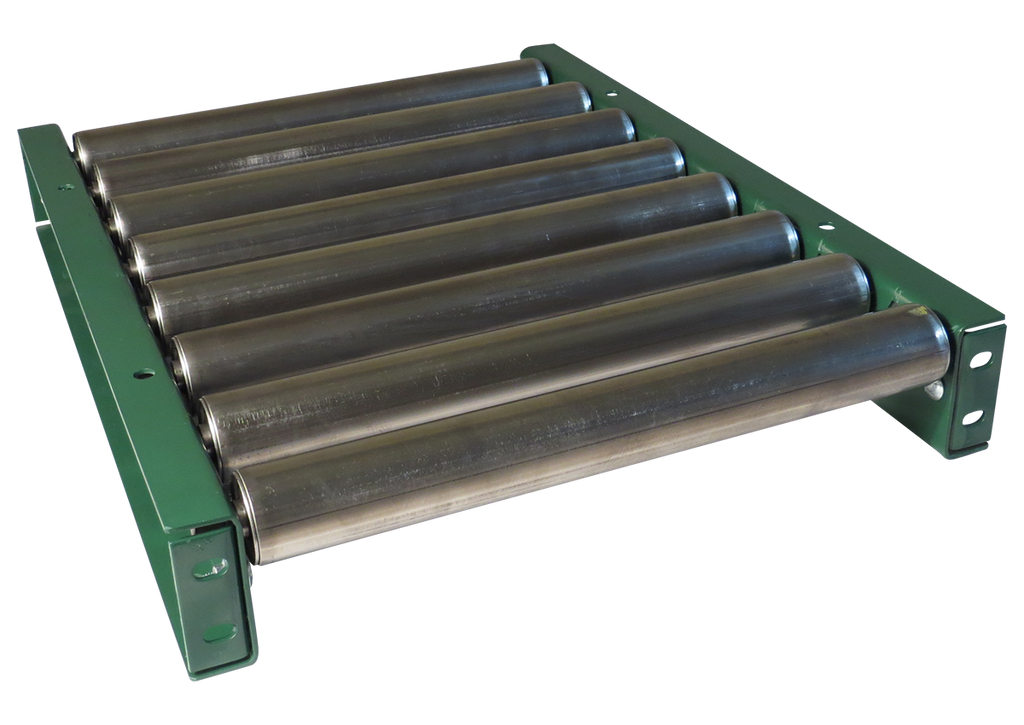

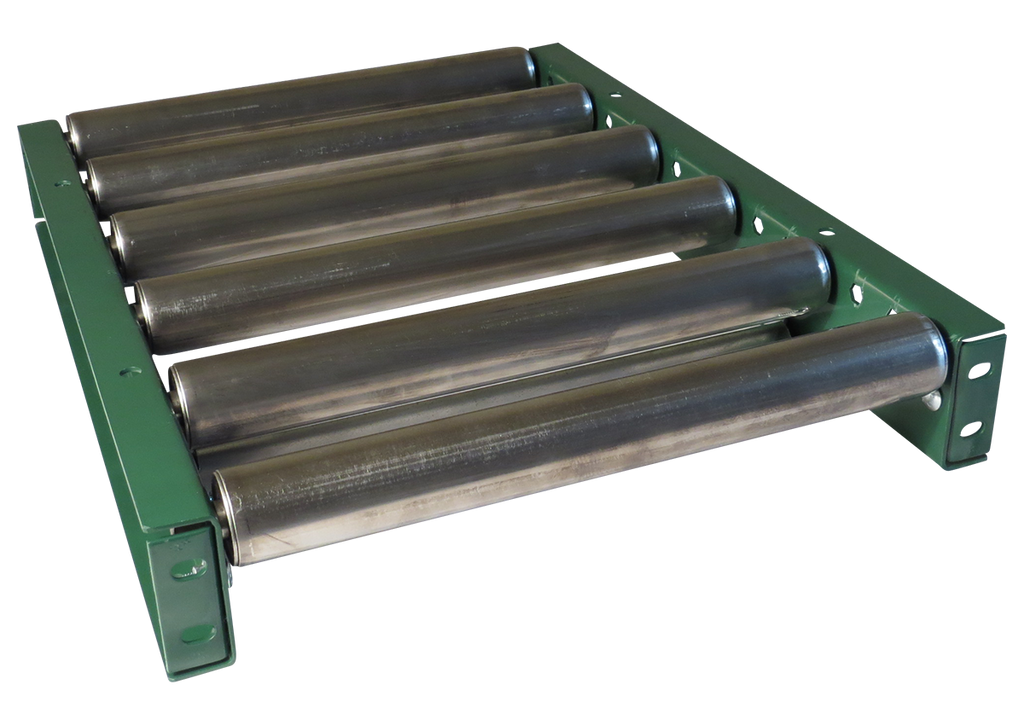

Model 10F__DG Roller Conveyor Product Information
Our 10F__DG roller model of gravity roller conveyors transport products or work in process from one work area to another. Our 10F__DG model roller for a conveyor system may be used to move boxes, cartons, totes, skids, and drums, making them one of the most popular handling systems around.
10F__DG Roller Conveyor Construction:
Roller: Model DG
Tube: 1.9"x12ga galvanized steel
Roller Bearing: Commercial light oil
Axle: 7/16" hex plain steel
Axle retention: Spring
Frame: 10F: 3-1/2" x 1-3/8" x 11 ga. painted steel channel
Coupling: Butt plate
Roller Capacity (lbs): 242 to 270
Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
10F__DG Roller Conveyor Configuration:
Roller Centers (in): 3, 4.5, 6
Between Frame (in): 7 to 51
Straights (ft): 5, 10
Curves (deg): 45, 90
Sleeve: Optional 1/8" orange polyurethane
