SB4006BFG16RE3/4A3ID30
i LEAD TIME: 10 working days
$3,556.00
Product Model Information

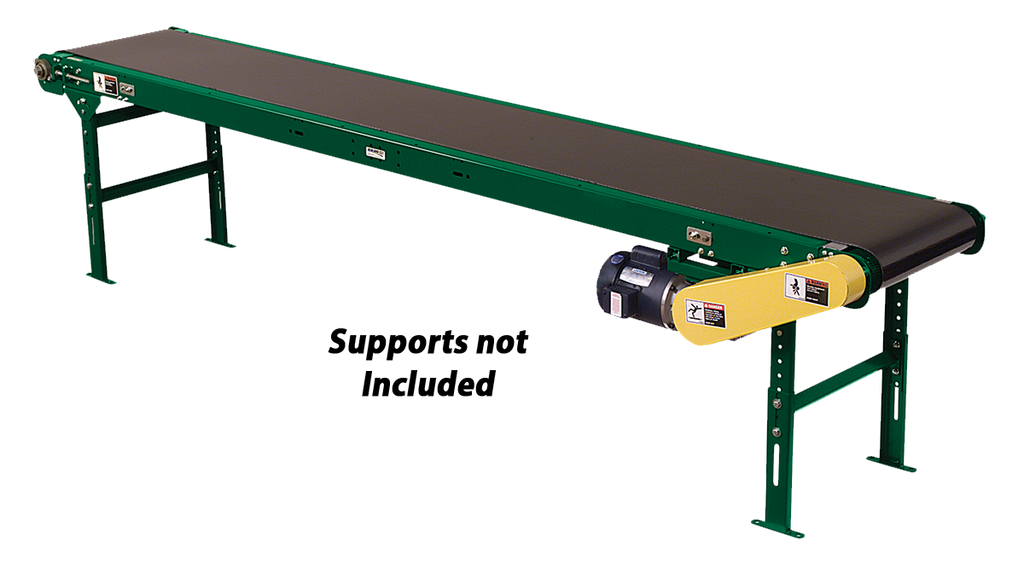

The Model SB400 power belt conveyor is constructed of a 12 ga 4" formed steel box bed, 4" end pulleys, and 1.9"diameter return rollers.
Refer to the Power Belt Conveyor Selection Guide for help.
SB4006BFG16RE3/4A3ID30 Construction
- Type: Slider Bed Box Frame
- Overall Length (ft): 16
- Drive: End Drive Right Hand
- Belt: FDA/USDA Food Grade White Buna-N
- Belt Width (in): 6
- Motor: 3/4 HP 240/460 VAC 3ɸ
- Speed (FPM): 30
- Load Capacity 10' Support Centers at no Incline(lbs/ft): 70
- Load Capacity 5' Support Centers at no Incline(lbs/ft): 70
- Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 41
- Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 41
- Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 32
- Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 32
- Weight (lbs): 342
SB400 Configurations
- Overall Length (ft): 6, 11, 16, 21, 31, 41, 51
- Drive: End Drive Right Hand, Center Drive Right Hand
- Belt Width: 6, 12, 18, 24, 30, 36
- Belt: General Purpose Smooth Black PVC, Rough Top Black SBR, FDA/USDA Food Grade White Buna-N
- Motor: , , , , ,
- Speed (ft/min): 30, 40, 60, 90
