RB1906BFG52RE1/2A3ID30
i LEAD TIME: 20 working days
$7,005.60
Product Model Information

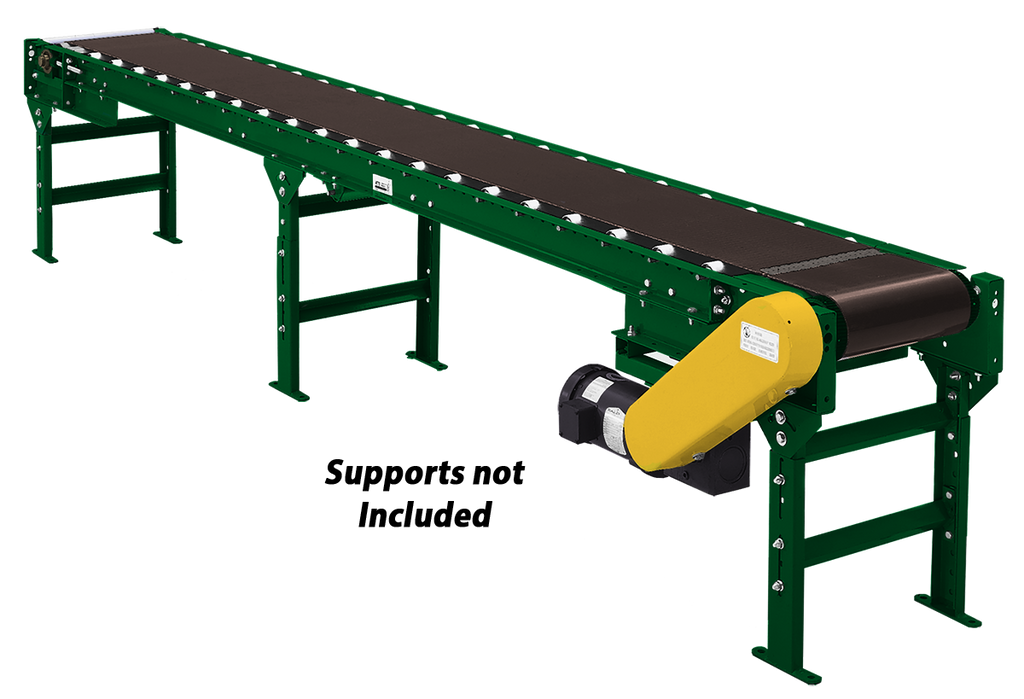

The Model RB190 power belt conveyor is constructed of 1.9x16 ga galvanized steel rollers on 6" centers mounted within 3-1/2" 11 ga channels, 4" end pulleys, and 1.9"diameter return rollers.
Refer to the Power Belt Conveyor Selection Guide for help.
RB1906BFG52RE1/2A3ID30 Construction
- Type: Roller Bed Channel Frame
- Overall Length (ft): 52
- Drive: End Drive Right Hand
- Belt: FDA/USDA Food Grade White Buna-N
- Belt Width (in): 6
- Motor: 1/2 HP 240/460 VAC 3ɸ
- Speed (FPM): 30
- Roller Centers (in): 6
- Load Capacity 10' Support Centers at no Incline(lbs/ft): 99
- Load Capacity 5' Support Centers at no Incline(lbs/ft): 99
- Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 16
- Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 16
- Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 10
- Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 10
- Weight (lbs): 770
RB190 Configurations
- Overall Length (ft): 7, 12, 17, 22, 32, 42, 52
- Drive: End Drive Right Hand, Center Drive Right Hand
- Belt Width: 6, 12, 18, 24, 30, 36
- Belt: General Purpose Smooth Black PVC, Rough Top Black SBR, FDA/USDA Food Grade White Buna-N
- Motor: , , , , ,
- Speed (ft/min): 30, 40, 60, 90
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
$7,005.60
